CIPI: Linear Storm and Wastewater - Assessing the financial impacts of extreme rainfall on public linear storm and wastewater infrastructure in Ontario

For more information click here for the Costing Climate Change to Public Infrastructure portal.

Glossary of Terms

List of Abbreviations

Term	Definition
CIPI	Costing Climate Change Impacts to Public Infrastructure (project)
CRV	Current Replacement Value
IDF	Intensity-Duration-Frequency (Curve)
IPCC	Intergovernmental Panel on Climate Change
O&M	Operations and Maintenance
RCP	Representative Concentration Pathway
SME	Subject-Matter Expert
USL	Useful Service Life
WSP	WSP Global Inc.

Definitions

Current Replacement Value: The current cost of rebuilding an infrastructure asset with the equivalent capacity, functionality and performance.

Operations and Maintenance (O&M): The routine activities performed on an asset that maximize service life and minimize service disruptions without altering the physical components of the asset.

Rehabilitation: Repairing part or most of an asset to extend its service life, without adding to its capacity, functionality or performance.

Renewal: Replacement of an existing asset, resulting in a new or as-new asset with an equivalent capacity, functionality and performance as the original asset. Renewal is different from rehabilitation, as renewal rebuilds the entire asset.

State of Good Repair: A performance standard which helps to maximize the benefits of public infrastructure in a cost-effective manner over time and ensures that infrastructure operates in a condition that is considered acceptable from an engineering perspective.

Stable Climate: A stable climate scenario assumes that climate indicators for extreme rainfall remain unchanged from their 1975-2005 average levels over the projection to 2100.

Rest of the Century: Refers to the 79 years from 2022 to 2100.

Baseline Cost: The operations and maintenance, rehabilitation, and renewal expense that would have been required to maintain public storm and wastewater infrastructure in a state of good repair in a stable climate.

Acute Hazard: Severeclimate hazards that occur rarely (such as the 100-year storm event).

Chronic Hazard: Climate hazards that occur often, such as heaviest annual 5-day rain.

Adaptation: Adaptation is modelled as an alteration of an asset’s physical components or its surroundings to prevent increased O&M expenses and more rapid deterioration (when applicable) caused by changes in extreme rainfall. In addition, adaptation ensures adequate capacity, minimizing flood risk from more extreme rainfall. Adaptation can be done during an asset’s service life or at renewal.

No Adaptation Strategy: An asset management strategy where public infrastructure assets are not adapted to more extreme rainfall.

Reactive Adaptation Strategy: An asset management strategy where publicinfrastructure assets are only adapted at the time of renewal to withstand more extreme rainfall.

Proactive Adaptation Strategy: An asset management strategywhere a majority of public infrastructure assets are adapted to withstand more extreme rainfall during the asset’s service life.

1 | Introduction and context

In June 2019, a Member of Provincial Parliament asked the FAO to analyze the costs that the impacts of climate change could impose on Ontario’s provincial and municipal infrastructure, and how those costs could affect the long-term budget outlook of the province. In response, the FAO launched its Costing Climate Change Impacts to Public Infrastructure project (CIPI).

In the first phase of the project, the FAO assessed the composition and state of repair of provincial[1] and municipal[2] infrastructure, with findings released in November 2020 and August 2021.

In fall 2021, as part of the second phase of the project, the FAO released three reports: a project backgrounder[3] describing the overall context and methodology of the project, a report prepared by WSP Global describing the detailed engineering impact of climate hazards on public infrastructure,[4] and a report detailing how changes in extreme rainfall, extreme heat and freeze-thaw cycles will impact the long-term costs of maintaining Ontario’s public buildings and facilities in a state of good repair.[5] In September 2022, as part of the final phase, the FAO released a report detailing how changes in extreme rainfall, extreme heat and freeze-thaw cycles will impact the long-term costs of maintaining Ontario’s public transportation infrastructure in a state of good repair.[6]

This report examines the impacts of more extreme rainfall on the long-term costs of maintaining public linear storm and wastewater infrastructure in a state of good repair.

2 | Summary

Ontario’s municipalities manage a large portfolio of linear storm and wastewater infrastructure

This report examines public linear storm and wastewater infrastructure. Stormwater assets include pipes, ditches and culverts, while wastewater assets include sewer pipes and sanitary force mains. In total, these assets are valued at $124 billion (all costs are in 2020 real dollars) and are owned by Ontario’s 444 municipalities.

The cost to maintain the existing portfolio in a state of good repair is substantial, even in a stable climate

If the climate was stable, it would cost an average of $3.0 billion per year over the century to bring these assets into a state of good repair and maintain this state. These costs would accumulate to $240 billion by 2100.

More extreme rainfall is already increasing the costs of maintaining this portfolio

In the absence of adaptation, more extreme rainfall is expected to add a cumulative $6.2 billion to the costs of maintaining the portfolio of assets by 2030, a 27 per cent increase above the stable climate scenario.

In the absence of adaptation, more extreme rainfall will increase the costs of maintaining this portfolio throughout the century, but the extent of the increase will depend on global climate change

In a medium emissions scenario where global emissions peak by mid-century, more extreme rainfall would increase infrastructure costs by an average of $1.1 billion per year, totalling $88 billion in climate-related costs by 2100. This is a 37 per cent increase in costs relative to the stable climate scenario. In the high emissions scenario, where global emissions continue rising throughout the century, infrastructure costs would instead increase by $1.8 billion per year on average, totalling $145 billion by 2100 (a 61 per cent increase). These additional climate-related costs primarily arise from the higher operations and maintenance expenses required.

Proactively adapting linear storm and wastewater infrastructure to withstand more extreme rainfall will cost less than not adapting over the long term

Proactively adapting public storm and wastewater infrastructure, either by increasing its capacity or incorporating source control measures (such as green infrastructure), will add between $71 billion to $127 billion to infrastructure costs relative to the stable climate scenario by 2100. This represents a cost increase between 29 and 53 per cent. While significant, these additional climate-related costs are lower (in real dollars) than those incurred in the absence of adaptation or if adaptation was undertaken at a more gradual pace. This is due to the avoidance of higher climate-related operations and maintenance costs.

Adaptation also ensures that linearstorm and wastewater assets will have adequate capacity to manage more extreme rainfall, reducing flood risk

As extreme rainfall becomes more frequent and intense, unadapted assets will increasingly face capacity constraints, raising the flood risk to surrounding areas. While outside the scope of this report, the costs of flooding damages are likely to be substantial. In addition to being the least expensive strategy for municipalities (in real dollars), a proactive adaptation strategy would also most rapidly reduce flood risk.

Costing climate impacts to public infrastructure over the long term is subject to significant uncertainty

Climate-related infrastructure costs will depend on the future path of global emissions, the pace of adaptation, and the specific capacity of storm and wastewater infrastructure to convey more extreme rainfall. The FAO’s study presents median cost projections as well as a range of possible cost outcomes in each scenario that account for this uncertainty.

3 | Maintaining storm and wastewater infrastructure in a stable climate

This chapter presents the scope of municipal storm and wastewater infrastructure considered in this report, discusses the costs necessary to maintain these assets in a state of good repair, and estimates the long-term infrastructure costs required to maintain this portfolio to 2100 under a stable climate. The purpose of this chapter is to establish a baseline projection of infrastructure costs. In later chapters, this baseline is compared to projections that account for changes in extreme rainfall.

Ontario has a large portfolio of storm and wastewater infrastructure

Stormwater infrastructure is critical in reducing flood risk by managing the impact of sudden and heavy rainfall or the gradual melting of snow and ice. Wastewater infrastructure plays an important role in preventing water pollution and protecting public health by collecting, treating and discharging waste from domestic, commercial, industrial and agricultural activity.[7]

This report focuses on linear storm and wastewater infrastructure owned and controlled by Ontario’s municipal governments. Non-linear storm and wastewater assets, such as those related to treatment and disposal, are excluded from this report.[8] Drinking water infrastructure, which represents 14 per cent of municipal infrastructure,[9] is also excluded.[10]

The linear storm and wastewater assets considered in this report include stormwater pipes, ditches and culverts, as well as wastewater sanitary force mains and sewer pipes.[11] Throughout this report, these assets are referred to as “storm and wastewater infrastructure” or “storm and wastewater assets.” The following is a brief description of the various asset types:

• Stormwater pipes collect and convey stormwater (rain and melted snow) to areas where it is then disposed of, such as rivers, lakes or temporary holding ponds. These pipes are buried underground, often under existing infrastructure, such as roadways.
• Stormwater ditches are excavations in the ground made to capture, convey and remove stormwater. Ditches are mainly located on the sides of roads to drain stormwater from nearby road surfaces.
• Stormwater culverts are small non-structural culverts less than three metres in diameter. Culverts facilitate drainage between ditches, stormwater pipes and other drainage outlets. Culverts are typically found under driveways and roadways and are required when an entrance or road crosses a drainage ditch.
• Wastewater sewer pipes collect and convey wastewater to treatment facilities by gravity. These sewer pipes are buried underground, often under existing infrastructure, such as roadways. Many older municipalities have sewer systems that were built during or before the 1940s and include combined sewers that carry both wastewater and stormwater.
• Wastewater sanitary force mains are pressurized sewer pipes that transport wastewater from a lower to a higher elevation. These assets are buried underground, often under existing infrastructure, such as roadways.

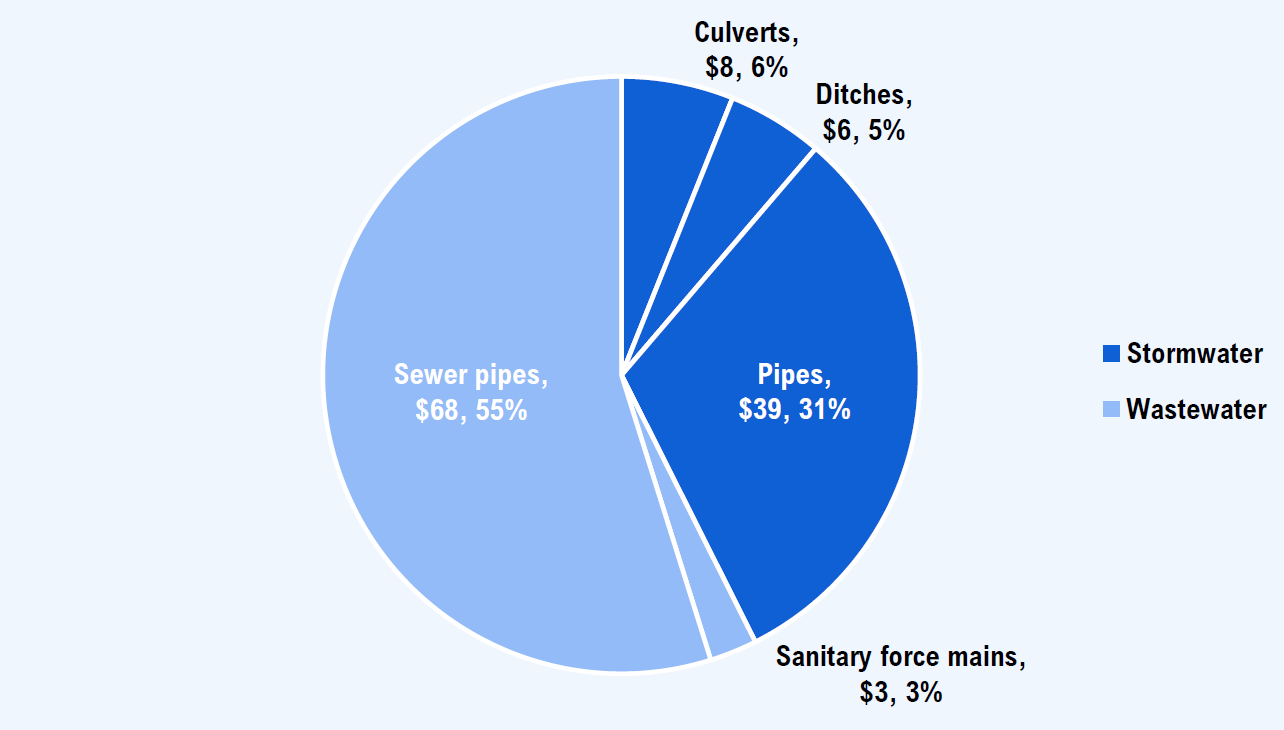

The FAO estimates that the current replacement value[12] (CRV) of these storm and wastewater assets is $124 billion in 2022. Figure 3-1 presents the breakdown of this valuation by asset type. Stormwater assets account for 43 per cent of the CRV, while wastewater assets account for 57 per cent.

Maintaining a large portfolio of public storm and wastewater infrastructure requires continual spending

Stormwater infrastructure is critical in reducing flood risks, while wastewater infrastructure plays an important role in preventing water pollution and protecting public health. To determine whether these critical services will be delivered, municipalities evaluate their infrastructure against level of service targets, one of which is keeping assets in a state of good repair.

Keeping assets in a state of good repair helps to maximize the benefits of public infrastructure in the most cost-effective manner over time. To be maintained in a state of good repair, assets require annual operations and maintenance (O&M) spending, as well as intermittent capital spending either to rehabilitate[13] an asset during its service life or renew[14] an asset at the end of its service life.

The costs to maintain public storm and wastewater infrastructure in a state of good repair reflect both the value of assets owned, as well as their condition, age and standards to which they must perform. For example, assets in poorer condition require more capital spending to bring them into a state of good repair. Likewise, older assets must be renewed sooner than newer assets.

To project the costs of maintaining public storm and wastewater infrastructure in a state of good repair, the FAO gathered and estimated asset-specific information on age, condition and current replacement value, as well as the general performance standards used to evaluate if an asset is in a state of good repair. Using an infrastructure deterioration model based on modelling techniques developed by the Ontario Ministry of Infrastructure,[15] the FAO projected the capital and operating expenses necessary to maintain the current portfolio[16] of public storm and wastewater infrastructure in a state of good repair to 2100, in the absence of climate considerations.[17]

These long-term O&M, rehabilitation and renewal spending estimates form the baseline projection against which the climate change costing scenarios will be compared. The baseline projection represents the infrastructure costs that would have been required to maintain public storm and wastewater infrastructure in a stable climate.[18] This allows the FAO to identify the additional climate-related infrastructure costs that are associated with changing climate hazards in later chapters.

Given the long useful service life of public storm and wastewater infrastructure, costs are projected to 2100. The results in this report are presented as average annual costs, as well as cumulative total costs over the century. Average annual costs are also presented over three time periods.

• The short term (2022-2030) shows how changing climate hazards are already impacting public infrastructure costs in the current decade.
• The mid-century (2031-2070) captures a period in which projections for the relevant climate variables begin to diverge in the three global emissions scenarios examined in this report.
• The late century (2071-2100) captures the period where projections for the relevant climate variables diverge significantly in the three global emissions scenarios.

All infrastructure cost projections presented in this report assume that the funding necessary to bring the current portfolio of storm and wastewater infrastructure into a state of good repair, and maintain this state, is made available and spent in a timely manner. In practice, infrastructure repair backlogs[19] exist and maintaining assets in a state of good repair is only one aspect of asset management.

The baseline cost projection does not include spending associated with assets currently under construction, planned for future construction or necessary to meet future infrastructure demand.[20]

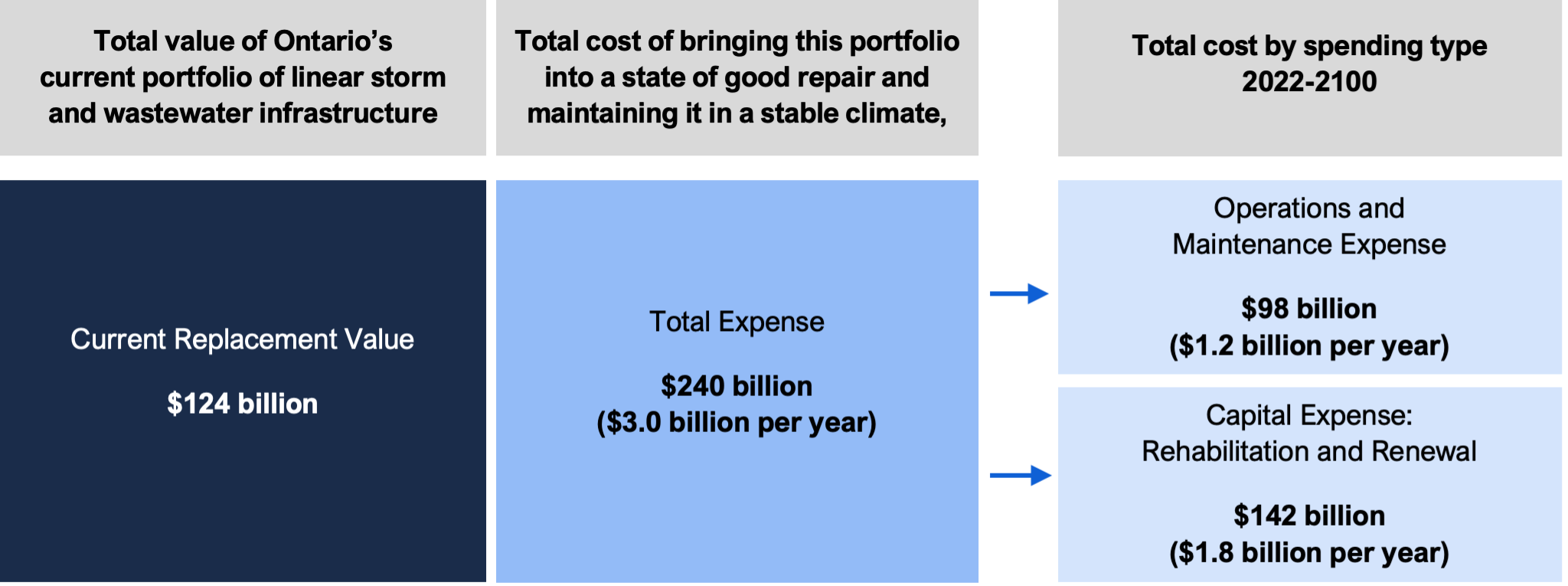

$3 billion per year is needed to maintain the current portfolio of linear storm and wastewater infrastructure in a stable climate

The FAO projects that bringing Ontario’s existing suite of linear storm and wastewater infrastructure into a state of good repair and maintaining it until 2100 would have cost an average of $3.0 billion per year in a stable climate, which would accumulate to approximately $240 billion by the end of the century. This cumulative baseline cost includes $98 billion ($1.2 billion per year) in O&M expense and $142 billion ($1.8 billion per year) in rehabilitation and renewal expense to 2100.

To maintain this portfolio in a stable climate, municipal governments would need to spend approximately $2.6 billion per year over the short term. Average annual costs remain similar in the mid-century period at $2.5 billion. By late century, average costs rise to $3.9 billion per year when a significant share of Ontario’s linear storm and wastewater infrastructure will have to be replaced.[21]

4 | The infrastructure costs of not adapting to more extreme rainfall

This chapter summarizes how projected changes in extreme rainfall would impact the costs of maintaining Ontario’s linear storm and wastewater infrastructure in the absence of adaptation measures. The first section provides an overview of how changes in extreme rainfall will impact the different asset types examined in this report. Next, the additional infrastructure costs of these impacts are estimated in the medium and high emissions scenarios. The chapter concludes with a discussion of how increases in extreme rainfall would challenge the capacity of these infrastructure systems, increasing the risk of flooding, and why these costs are excluded from the report.

Extreme rainfall is projected to increase

To ensure safety and reliability, infrastructure is designed, built and maintained to withstand a specific range of climate conditions typically based on historic climatic data.[22] However, many climate hazards are projected to increase in the future.

Climate change is associated with many hazards to public infrastructure, which can take the form of extreme weather events or long-term chronic impacts. Ontario has been subject to costly floods and ice storms and is also prone to droughts, intense rainfall, wildfires, windstorms, heatwaves and permafrost melt.[23] The broader CIPI project focused on only three climate hazards - extreme rainfall, extreme heat and freeze-thaw cycles - as they were determined to have broad and financially material impacts to public infrastructure and can be projected with a reasonable degree of scientific confidence.[24]

Unlike with buildings and transportation infrastructure, extreme heat or freeze-thaw cycles are not expected to significantly impact storm and wastewater infrastructure since many components are buried underground. However, extreme rainfall will have significant impact on storm and wastewater infrastructure as the frequency and intensity of storm events increase over the century.[25]

The impacts of extreme rainfall on Ontario’s public storm and wastewater infrastructure will depend on the path of global greenhouse gas emissions and the extent of global mean temperature increases. The FAO costed climate impacts to public storm and wastewater infrastructure for three global emissions scenarios:

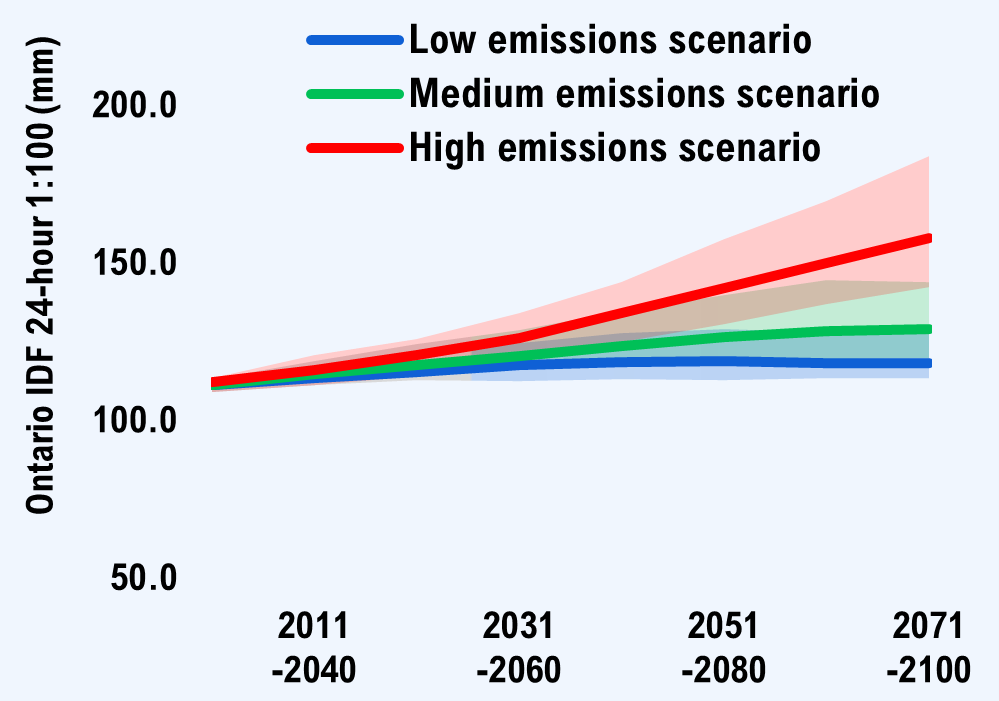

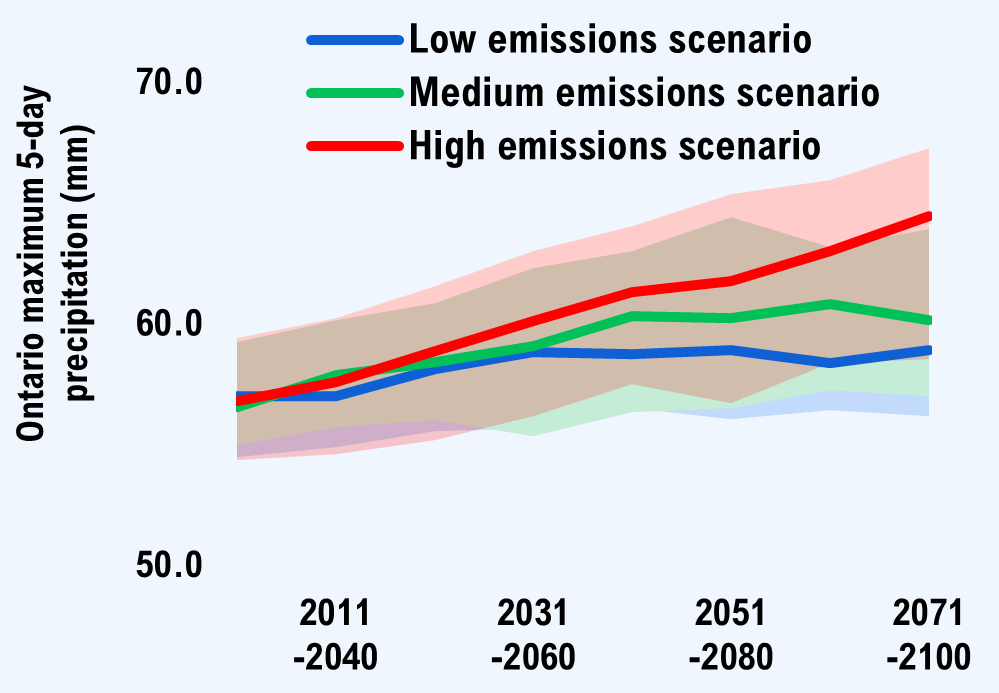

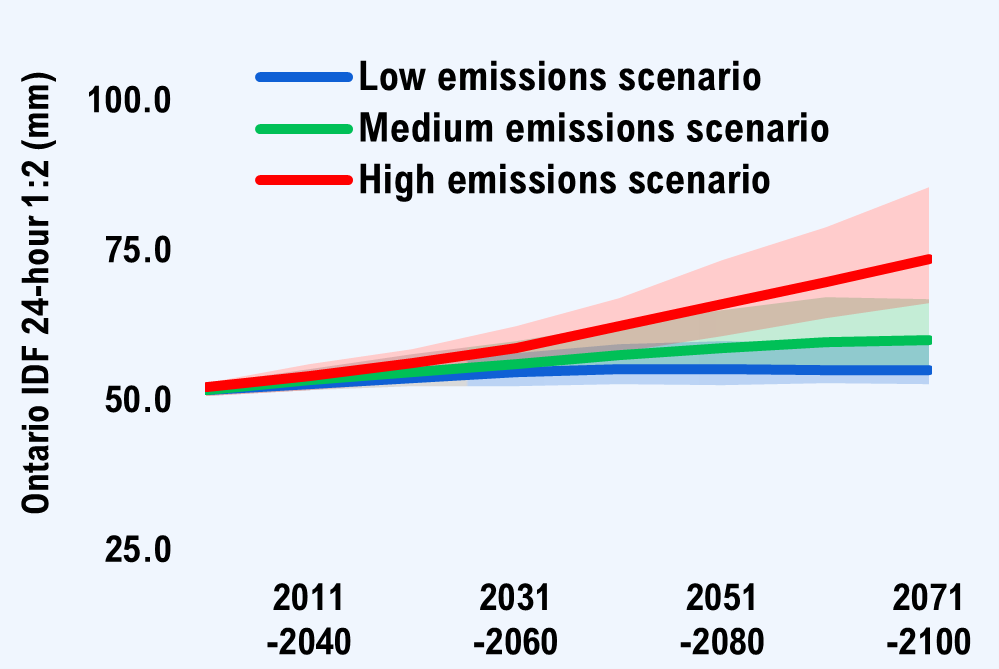

Figure 4-1 presents a brief description of the projected changes in some of the climate indicators used to represent extreme rainfall in this report. Appendix B contains a full description of all climate variables relevant to public storm and wastewater infrastructure, and their trends in all scenarios.

More extreme rainfall will impact storm and wastewater infrastructure

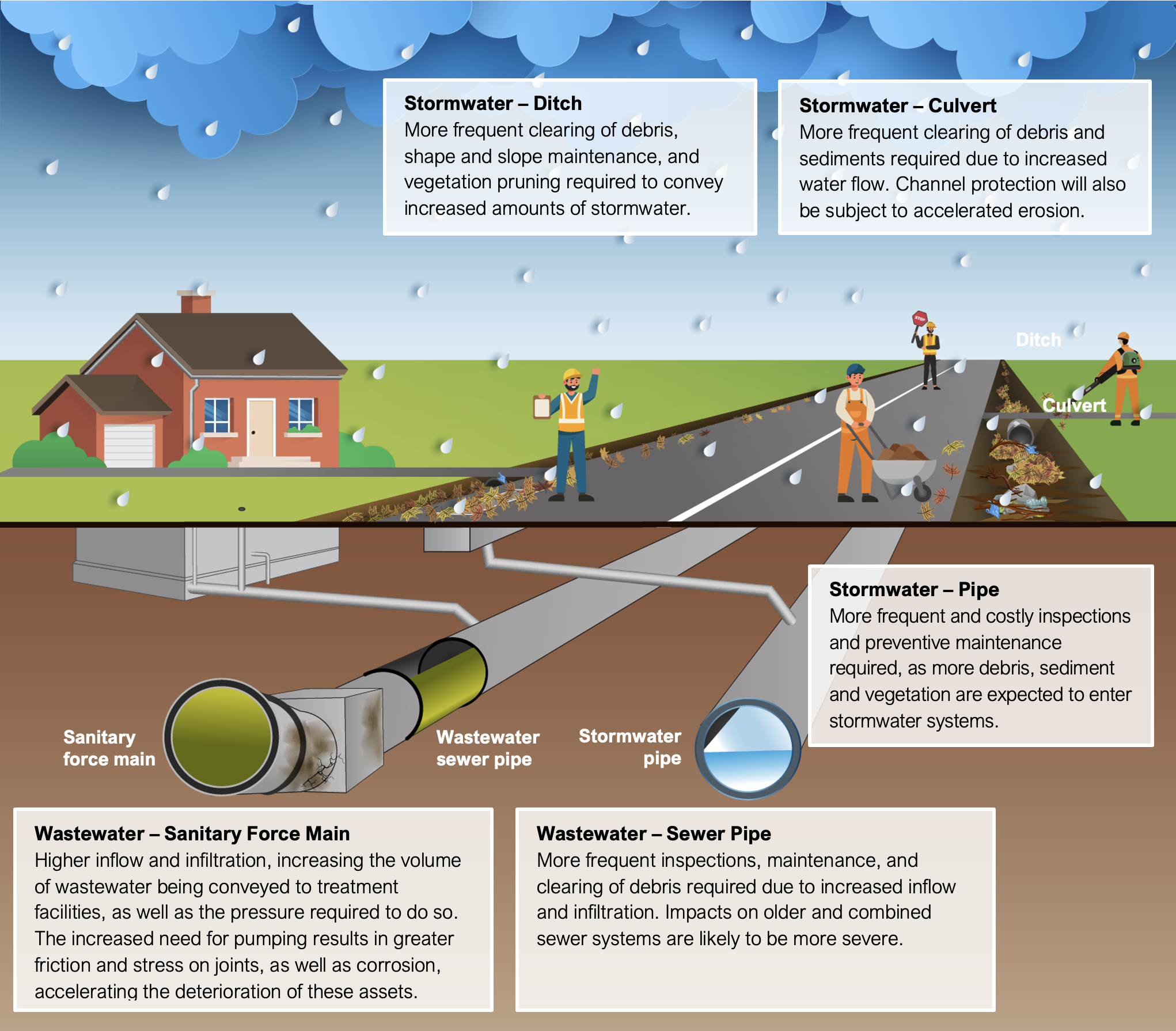

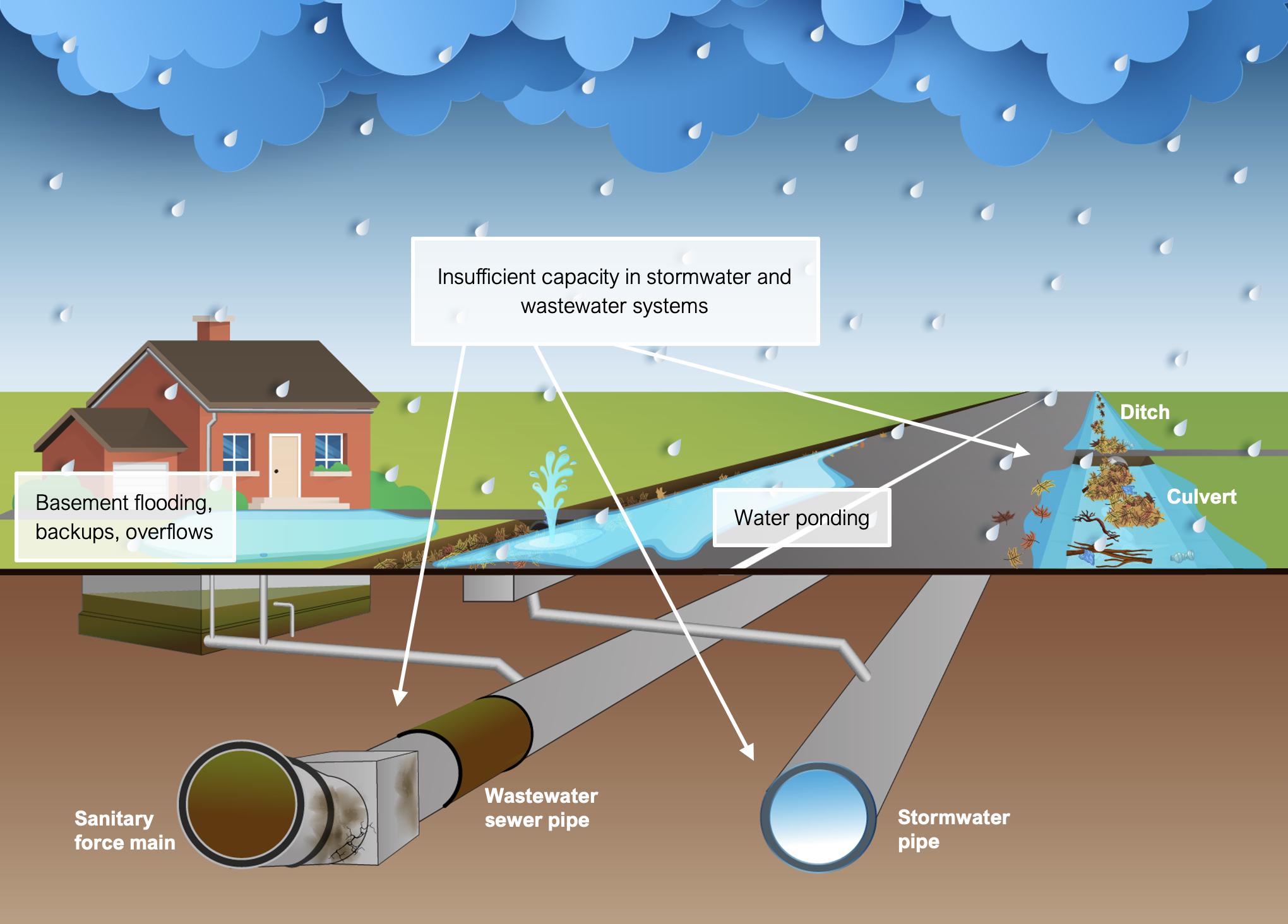

The following section outlines the key engineering impacts of increases in both acute and chronic extreme rainfall on linear storm and wastewater infrastructure, and how these impacts will influence the costs of maintaining these assets.[31] The impacts of flooding to surrounding areas due to undersized storm and wastewater infrastructure, while out of scope for this project, are discussed at the end of the chapter.

Stormwater

Pipes

Stormwater pipes are usually designed to address more frequent rainfall events (i.e., 2-year storm events). As the intensity of extreme rainfall events increases, pipes will require more frequent and costly inspections and preventive maintenance, as more debris, sediment and vegetation are expected to enter stormwater systems.

Ditches

Ditches are generally constructed with higher capacity than pipes but are vulnerable to large overflow events. In urban areas, major systems must be able to convey the flow resulting from acute rainfall events such as the 100-year storm. As the intensity of extreme rainfall events increases, ditches will require more frequent clearing of debris, shape and slope maintenance, and vegetation pruning to convey increased amounts of stormwater.

Small Non-Structural Culverts

Small culverts are also vulnerable to overflow events. As the intensity of extreme rainfall events increases, these assets will require more frequent clearing of debris and sediments resulting from increased water flow. Channel protection will also be subject to accelerated erosion.

Wastewater

Sewer Pipes

Sewer pipes allow wastewater to flow by gravity from source to treatment facility. These assets are vulnerable to both short duration and long duration rainfall events. Increased intensity of short duration rainfall events will increase the inflow of surface water into sewer pipes, while increased intensity of longer duration events will cause groundwater to infiltrate sewer pipes. Due to increased inflow and infiltration, pipes will require more frequent inspections, maintenance and clearing of debris. These impacts are likely to be more severe for older and combined sewer systems.

Sanitary Force Mains

In areas where wastewater cannot be conveyed through a gravity-reliant system, sanitary force mains force wastewater up to higher elevations using a pressurized system. More extreme rainfall will result in higher inflow and infiltration, increasing the volume of wastewater being conveyed to treatment facilities, as well as the pressure required to do so. The increased need for pumping results in greater friction and stress on joints, as well as corrosion, accelerating the deterioration of these assets.

More extreme rainfall is raising the cost of maintaining public storm and wastewater infrastructure

In this section, the FAO presents the cost projections of a no adaptation asset management strategy. In this strategy, asset managers do not adapt public storm and wastewater infrastructure to withstand changing climate hazards, but instead pay higher costs to maintain their assets in a state of good repair in the face of increasing extreme rainfall. While in practice many climate change adaptation initiatives are under way (see Chapter 5), the intent of the no adaptation strategy is to explore the cost implications of not adapting public storm and wastewater infrastructure to extreme rainfall.

In the absence of adaptation actions, increasing extreme rainfall will shorten the useful service life (USL) of some public storm and wastewater infrastructure, requiring more frequent and additional rehabilitations relative to the stable climate scenario. More extreme rainfall will also result in higher spending on operations and maintenance (O&M). Taken together, these factors will increase the costs of maintaining the current portfolio of public storm and wastewater infrastructure in a state of good repair.

As extreme rainfall increases throughout the century, the existing capacity of storm and wastewater infrastructure will not be adequate, increasing flood risk to surrounding areas. The cost estimates presented below do not include the costs of flooding that could result from inadequate capacity (capacity issues are discussed at the end of this chapter).

Projecting public storm and wastewater infrastructure costs in the no adaptation strategy

Figure 4-3 shows the costs to maintain infrastructure in the no adaptation strategy. In the medium emissions scenario (median projection), more extreme rainfall will raise the average annual cost of maintaining the existing portfolio of public storm and wastewater infrastructure in a state of good repair by $1.1 billion per year over the century. This represents a 37 per cent increase in costs over what would have occurred in a stable climate. These average annual costs rise from $0.6 billion per year this decade, to $1.0 billion in the mid-century period, and $1.4 billion in the late century as rainfall becomes more extreme.

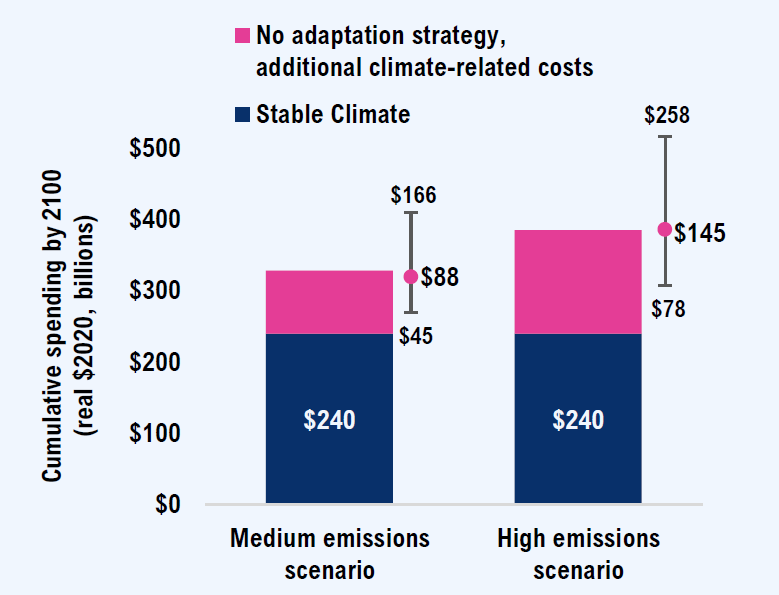

In the high emissions scenario (median projection), more extreme rainfall would instead raise average annual infrastructure costs by $1.8 billion per year over the century, a 61 per cent increase in costs relative to the stable climate scenario. In this case, climate-related costs increase from $0.7 billion this decade, to an average of $1.4 billion in the mid-century period, rising to $2.8 billion by late century.

The larger costs in the high emissions scenario occur because rainfall is projected to become more extreme throughout the century. In contrast, the pace of change in extreme rainfall slows by mid-century in the medium emissions scenario (see Figure 4-1).

More extreme rainfall is also increasing the risk of flooding

Many municipalities assess flood risk by determining if their infrastructure has sufficient (or excess) capacity to accommodate major storm events,[33] based on municipal design guidelines that often rely on historical storm events. However, future rainfall intensities are expected to surpass design standards in some cases, which could lead to more frequent flooding events. These flooding events would occur even if the storm and wastewater systems remain in a state of good repair because future extreme rainfall could exceed existing design capacities.

For example, the City of Toronto’s ditches and underground storm water systems are designed to accommodate runoff from 2-year storm events with an estimated 24-hour intensity of 44 mm.[34] Projections from the Canadian Centre for Climate Services for extreme rainfall in the Toronto region indicate that this figure could rise to 51 mm (49 to 53 mm) over the 2021-2050 period in the low emissions scenario, and up to 67 mm (61 to 75 mm) over the 2071-2100 period in the high emissions scenario.

All asset types examined in this report will be vulnerable to capacity issues as extreme rainfall increases over time, increasing flood risk to surrounding areas.[35] In the past, flooding events have caused extensive property damage.

• In 2013, flash flooding in Toronto resulted in $940 million in damages.[36]
• In 2018, a thunderstorm in Toronto that produced 51 mm of rain in one hour resulted in over $80 million in insured damages.[37]
• Extreme rainfall in the Windsor region in both 2016 and 2017 led to significant flooding, resulting in $232 million of insured damages.[38]

While these events have not been directly linked to climate change, they demonstrate how flooding events can cause significant property damage to Ontario households and businesses.

Flooding can also result in water pollution as floodwaters mix with agricultural waste, chemicals or raw sewage and contaminate drinking water as well as cause other public health concerns.[39]

The CIPI project focuses on estimating how changing climate hazards will impact the cost of maintaining existing linear storm and wastewater infrastructure in a state of good repair. This scope does not include the costs of flooding to households or businesses when this infrastructure fails to adequately convey stormwater. However, these costs are likely to be significant and as such, are an area for further research that could greatly benefit the public interest.

5 | The costs of adapting linear storm and wastewater infrastructure

Chapter 4 projected how more extreme rainfall would impact the costs of maintaining Ontario’s storm and wastewater infrastructure in the absence of adaptation measures. The chapter also described how inadequate capacity of storm and wastewater infrastructure can impair its ability to convey water, causing more frequent flooding. In practice, storm and wastewater infrastructure can be adapted to withstand these impacts and avoid accelerated deterioration and higher O&M expenses from more extreme rainfall. Adaptation can also ensure that these assets will have adequate capacity to manage increasing extreme rainfall, reducing flood risk to surrounding areas.

This chapter defines the scope of adaptation analyzed in this report and estimates a range of costs to adapt Ontario’s portfolio of public storm and wastewater infrastructure to withstand late-century climate projections for extreme rainfall in the medium and high emissions scenarios.

Adapting public storm and wastewater infrastructure can help prevent the impacts of more extreme rainfall

Adapting linear storm and wastewater infrastructure to withstand more extreme rainfall could take many forms. A few examples include:

• addressing gaps in standards and best practices for stormwater and wastewater management, such as defining and incorporating a consistent level of service across provincial and municipal design guidelines;[41]
• changing the way assets are managed, for example, altering the frequency of operations and maintenance schedules or improving the monitoring and maintenance of drainage systems;[42]
• managing stormwater in urban areas through low-impact development, such as the use of permeable pavement and green infrastructure, which helps to soak rainwater into the ground and reduce the runoff volume managed through conventional stormwater systems;[43]
• planting urban forests that help retain stormwater;[44]
• enabling municipalities to plan and implement robust systems for surface drainage of settlement areas;[45]
• separating drainage and sanitary systems to reduce the flow of stormwater into wastewater systems;[46] and
• improving flood plain mapping of areas at risk of flooding that could support the development of flood control bylaws.[47]

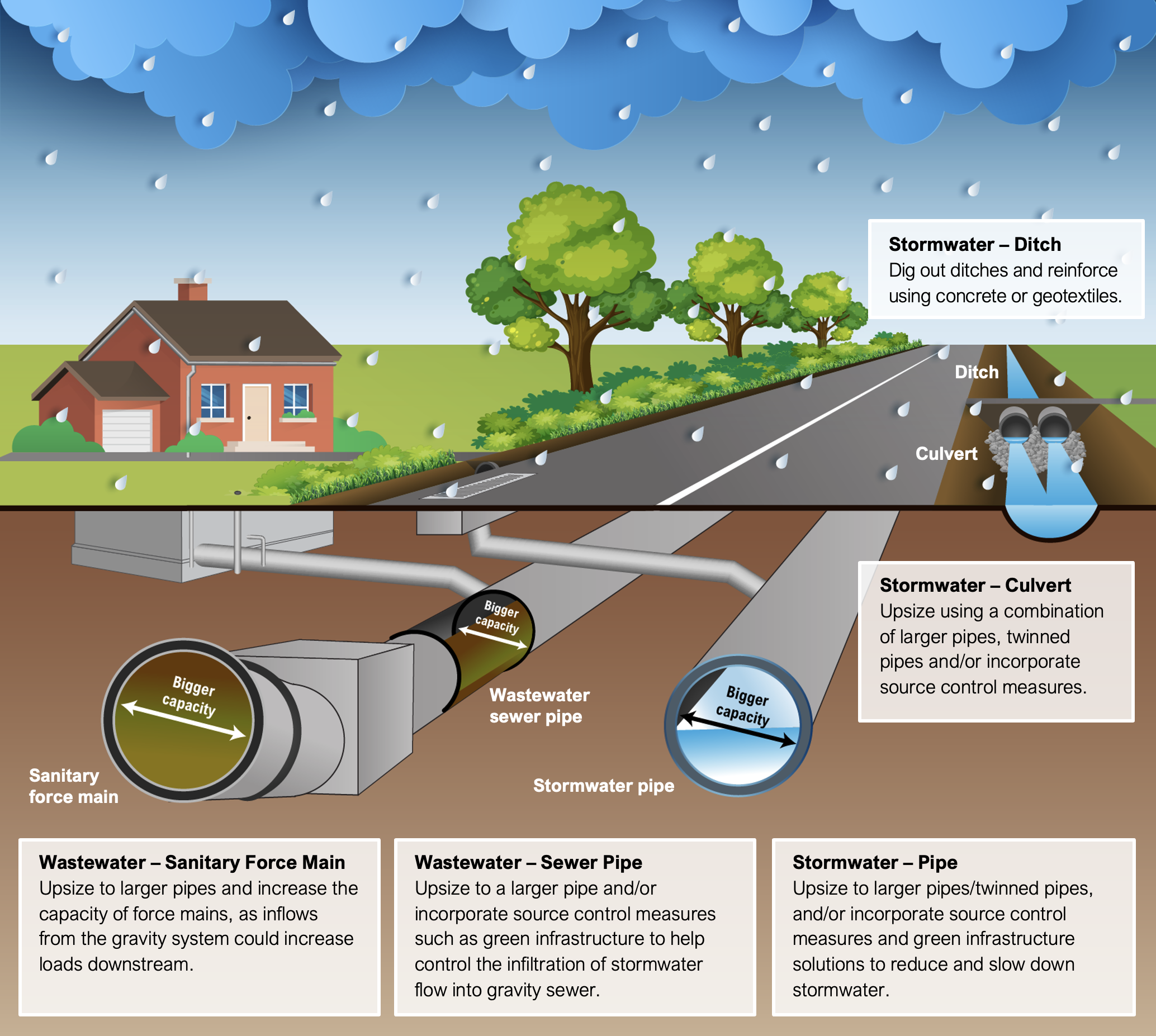

Figure 5-2 presents some examples of adaptation measures for storm and wastewater infrastructure components included in the FAO’s modelling framework. These adaptations would prevent accelerated deterioration and higher O&M costs caused by more extreme rainfall, as well as increase the capacity of this infrastructure and reduce flood risk.[48]

Adaptation strategy costs vary based on the approach taken

To estimate adaptation costs, the FAO assumed that public storm and wastewater infrastructure assets are adapted to accommodate late-century projections[49] for extreme rainfall. Once adapted, the FAO assumes that the asset no longer faces additional O&M and capital expenses due to more extreme rainfall. Adaptation also ensures storm and wastewater assets will have adequate capacity to manage more extreme rainfall, reducing flood risk in surrounding areas.

The additional infrastructure costs of an adaptation strategy include higher capital expenses from increased deterioration and higher O&M expenses until adaptation (but no costs associated with flooding in surrounding areas), and a one-time adaptation expense. After an asset is adapted, it no longer experiences accelerated deterioration and higher O&M costs due to more extreme rainfall. The costs presented in this chapter would occur instead of those estimated in the no adaptation strategy presented in Chapter 4.

The costs of an adaptation strategy would vary based on when the adaptation actions are undertaken. To highlight how these costs could vary, the FAO developed two adaptation strategies.

• Reactive adaptation strategy: Storm and wastewater assets are only adapted at the time of renewal. This approach results in a gradual increase in the share of adapted assets over the century, with only about 10 per cent of assets adapted by 2050 and 43 per cent adapted by 2070. By 2100, all assets are adapted.

• Proactive adaptation strategy: Storm and wastewater assets are adapted at the first available opportunity. This occurs either during an asset’s next major rehabilitation (where instead of rehabilitating the asset, it is replaced with a new adapted asset) or at renewal, whichever comes first. In this approach, 33 per cent of storm and wastewater assets are adapted by 2030 and all assets are adapted by 2070.

The pace of adaptation of storm and wastewater infrastructure in the two strategies will also impact flood risk in surrounding areas. The gradual pace of adaptation in the reactive adaptation strategy means that a large proportion of infrastructure will remain unadapted for a longer period, with only 43 per cent of assets adapted by 2070, leaving a significant exposure to flood risk.

In contrast, the faster pace of adaptation in the proactive adaptation strategy lowers flood risk more rapidly as a larger share of the assets in the portfolio are adapted much sooner. By 2030, one-third of the portfolio is adapted to late-century projections of extreme rainfall, while by 2050 that share rises to over 70 per cent. By 2070, the entire portfolio is adapted to the impacts of more extreme rainfall. While adapting the entire portfolio of storm and wastewater infrastructure will not eliminate flood risk entirely, rapid adaptation will lower flood risk sooner than in the reactive strategy.

Projecting public storm and wastewater infrastructure costs in the reactive adaptation strategy

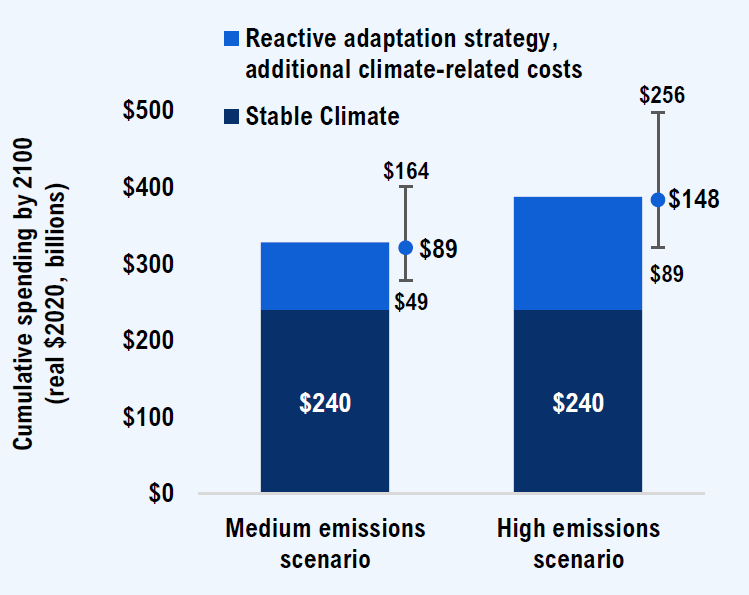

In the reactive adaptation strategy, storm and wastewater assets are adapted at the time of renewal, resulting in a gradual pace of adaptation that leaves flood risks largely unaddressed throughout most of the century (see Figure 5-3).

Figure 5-4 shows the average annual climate-related costs in the reactive adaptation strategy. In the medium emissions scenario (median projection), average annual infrastructure costs would increase by $1.1 billion per year over the century. This represents a 37 per cent increase in costs over what would have occurred in a stable climate. These average annual costs rise from $0.9 billion per year this decade, to $1.1 billion in the mid-century period, and to $1.2 billion per year in the late century as the pace of adaptation increases.

In the high emissions scenario (median projection), average annual infrastructure costs would instead increase by $1.9 billion per year over the century, a 62 per cent increase in costs relative to the stable climate scenario. In this scenario, climate-related costs increase from $1.3 billion this decade, to an average of $1.7 billion in the mid-century period, then increasing to $2.3 billion in the late century.

Costs in the high emissions scenario are larger than in the medium emissions scenario as more extreme rainfall accelerates deterioration and raises the O&M costs of non-adapted assets. Adaptation costs are also higher relative to the medium emissions scenario due to the higher design standards required to withstand the high emissions scenario.

Projecting public storm and wastewater infrastructure costs in the proactive adaptation strategy

In the proactive adaptation strategy, storm and wastewater assets are adapted at the first available opportunity. This occurs either during an asset’s next major rehabilitation when it is replaced with a new adapted asset instead of being rehabilitated, or at renewal, whichever comes first. In this approach, 33 per cent of storm and wastewater assets are adapted by 2030 and all assets are adapted by 2070. Under this strategy, flood risk is more rapidly reduced compared to the gradual pace of adaptation in the reactive adaptation strategy.

Figure 5-7 shows the average annual climate-related costs in the proactive adaptation strategy. In the medium emissions scenario (median projection), average annual infrastructure costs would increase by $0.9 billion per year over the century. This represents a 29 per cent increase in costs over what would have occurred in a stable climate. In the high emissions scenario (median projection), average annual infrastructure costs would instead increase by $1.6 billion per year over the century, a 53 per cent increase in costs relative to the stable climate scenario.

In a stable climate, a large share of Ontario’s storm and wastewater system would have been replaced in the late century period. In the proactive adaptation strategy, a significant share of storm and wastewater infrastructure is renewed and adapted well before the end of its service life. This would significantly raise infrastructure costs in the short term and mid-century period relative to the stable climate scenario. This also means that fewer renewals would occur in the late century period compared to the stable climate scenario, lowering infrastructure costs in this period.[51]

6 | Comparing the costs of different asset management strategies

Chapters 4 and 5 examined the costs of maintaining public linear storm and wastewater infrastructure in a state of good repair in the presence of climate change under three asset management strategies: no adaptation, reactive adaptation and proactive adaptation. These strategies were designed to estimate the scale of the impact that changes in extreme rainfall will impose on municipal infrastructure budgets over the rest of the century.[53]

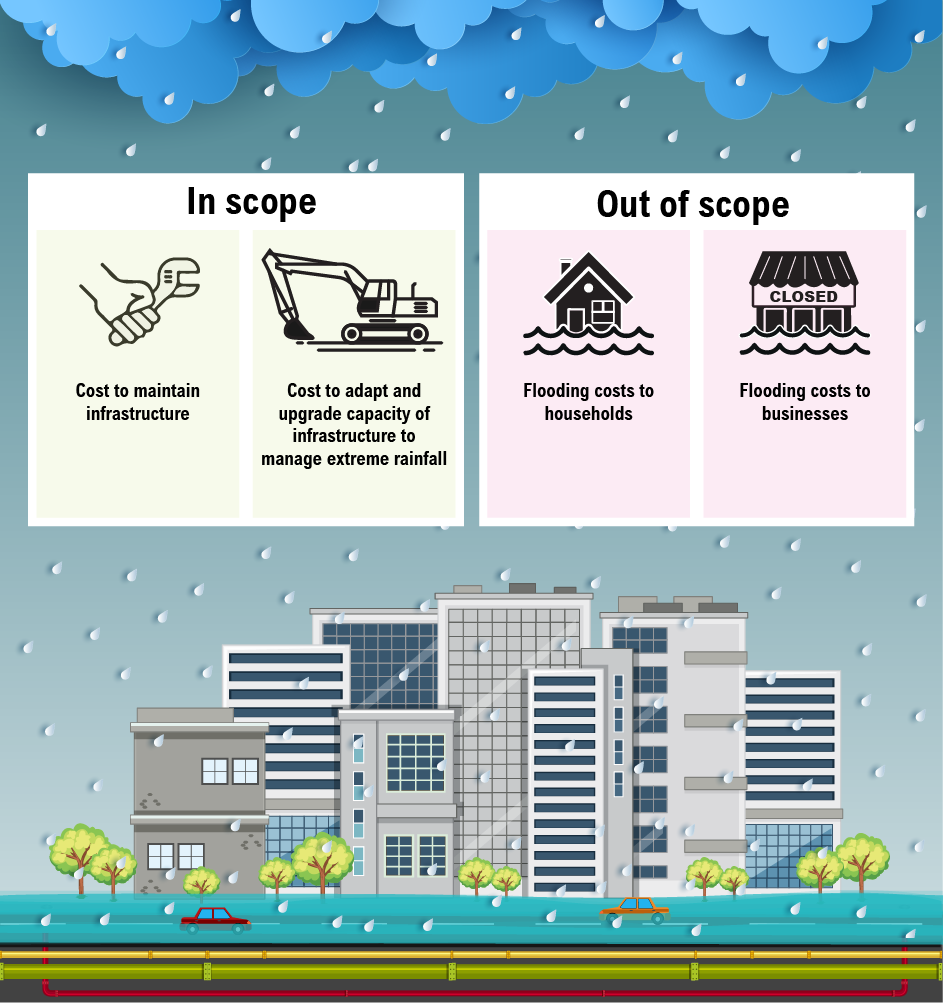

This chapter first discusses the scope of the costs analyzed across the three asset management strategies. Next, cost estimates across the strategies are compared and the implications of each strategy for reducing flood risks are considered. The chapter then presents the cost profiles of each strategy over the projection. The chapter concludes by discussing the factors that were beyond the scope of the FAO’s analysis but are relevant in determining the most cost-effective strategy for managing specific assets.

The FAO’s analysis focuses on the costs of maintaining municipal linear storm and wastewater infrastructure

This report estimates the impact of increasing extreme rainfall on the costs to municipal governments to keep their linear storm and wastewater infrastructure in a state of good repair, either through maintaining unadapted infrastructure or adapting the assets. The report does not attempt a full cost-benefit analysis and does not estimate the costs that could result from undersized storm and wastewater infrastructure, such as flooding costs borne by households or businesses. These costs were beyond the project’s scope but are likely substantial and relevant to adaptation decisions.

For example, if extreme rainfall inundates an undersized culvert during a storm and the surrounding area floods, this analysis includes the cost of removing the debris that accumulated in the culvert, as well as any repairs required, but does not include the costs to repair the flood damages sustained by households and businesses in the surrounding area. However, the adaptation strategies do include the adaptation costs of installing a new larger culvert, which expands its capacity and reduces flood risk in the surrounding area (see Figure 6-1).

Proactive adaptation will lower flood risks and climate-related costs compared to not adapting

As extreme rainfall becomes more frequent and intense, unadapted assets will increasingly face capacity constraints, heightening flood risk in surrounding areas. Adaptation ensures that storm and wastewater assets will have adequate capacity to manage future projections of extreme rainfall, reducing flood risk. The faster assets are adapted, the faster flood risk is reduced.

Figure 6-2 shows how the share of unadapted public storm and wastewater assets changes over the projection for the three asset management strategies.

The proactive adaptation strategy reduces flood risk faster than the other asset management strategies, as the portfolio of storm and wastewater assets are adapted at a faster pace. In this strategy, the share of unadapted assets quickly declines over the projection, falling to 68 per cent by 2030, to 27 per cent by 2050 and to zero by 2070.[54] While the reactive strategy eventually sees the share of unadapted assets fall to zero, this happens at a much slower pace since the majority of assets remain unadapted for most of the projection. In the no adaptation strategy, flood risk is the largest, as no assets are adapted over the projection.[55]

Apart from lowering the flood risk to the largest extent, proactively adapting infrastructure is the least costly strategy for municipalities (in real dollars),[56]as highlighted in Figure 6-3. In the no adaptation strategy, no assets are adapted and thus incur higher climate-related infrastructure costs over the entire projection. Similarly, the gradual pace of adaptation in the reactive approach exposes a large share of assets to higher climate-related infrastructure costs over most of the projection, while also incurring the costs of adaptation. In contrast, the rapid pace of adaptation in the proactive strategy avoids much of the higher climate-related operations and maintenance costs.

When comparing cumulative costs in the three strategies, note that if the costs of flooding borne by households and business were incorporated, cumulative costs in the no adaptation strategy would rise significantly, while those in the proactive adaptation strategy would rise the least.

Regardless of which asset management strategy is pursued, the future path of global climate change will be a key determinant in the extent of additional climate-related infrastructure costs. Costs are lower in the medium emissions scenario than in the high emissions scenario (median projections) across all asset management strategies.

Proactively adapting linear storm and wastewater infrastructure would require significant upfront costs

Figure 6-4 shows how costs accumulate in the medium and high emissions scenarios under the three asset management strategies.

In the first half of the century, the cost profiles of the no adaptation strategy and the reactive adaptation strategyare similar, as assets in both incur higher costs from more extreme rainfall. In the second half of the century, these two cost profiles start to diverge as the spending necessary to adapt storm and wastewater infrastructure to extreme rainfall raises the cost of the reactive adaptation strategy slightly above the no adaptation strategy.

In contrast, under the proactive adaptation strategy, assets are adapted at a rapid pace largely through early renewals. This strategy sees a substantial accumulation in costs over the next four decades. However, late- century costs decrease as adapted assets avoid higher climate-related operating and capital costs, and fewer future renewals are required.

While the proactive adaptation strategy is the least expensive in real 2020 dollars over the projection, the strategy requires significant upfront costs. By 2030, additional climate-related costs amount to $31 billion in the medium emissions scenario and $40 billion in the high emissions scenario, an average of $3 and $4 billion annually over the nine-year period. This would be a substantial increase in infrastructure spending for municipalities, which have spent an average of $11 billion per year on capital assets across all types of infrastructure (including storm and wastewater assets) over the 2009-2019 period.[57]

Making asset-specific adaptation decisions should consider many other factors

Costing three different asset management strategies at the portfolio level was designed to estimate the scale of the budgetary impact that changes in extreme rainfall could impose over the rest of the century. However, to make asset-specific climate adaptation decisions, many other factors should be considered,[58] including:

• an asset’s individual characteristics (including age, condition and specific climate vulnerabilities);
• a wider array of climate impacts (such as fluvial flooding and permafrost degradation) over the entire useful life of an asset;
• costs to households and businesses, including the costs of flooding and the costs of service disruptions as construction occurs; and
• other non-asset related considerations.[59]

Incorporating these factors would further enhance the FAO’s methodology and would better support adaptation decision-making for individual assets in a changing climate.

7 | Appendices

Appendix A: Scope of storm and wastewater sector assets

Table A-1: Linear storm and wastewater infrastructure valued at $124 billion (current replacement value) included in the scope of this report

Note: The age data presented are as of 2020.

Source: FAO analysis of municipal data as detailed in FAO’s Municipal Infrastructure report.

Level of Government	Sector	Total CRV (2020$ billions)	Description
Municipal	Stormwater	$52.8	40,368 kilometres of stormwater pipes valued at $38.8 billion 8,967 kilometres of stormwater culverts valued at $7.5 billion 76,423 kilometres of open ditches valued at $6.5 billion More than one-fifth (22.9 per cent) of Ontario’s stormwater linear engineering infrastructure was built between 1970 and 1999, while 9.3 per cent was built between 1940 and 1969
	Wastewater	$71.1	44,802 kilometres of sewer pipes of small (less than 450 mm), medium (450 to 1500 mm), large (more than1500 mm) and unknown diameter valued at $67.9 billion 2,334 kilometres of sanitary force mains valued at $3.2 billion A large share (42.8 per cent) of Ontario’s wastewater linear engineering infrastructure was constructed between 1970 and 1999, while one-fifth (19.7 per cent) was built between 1940 and 1969

Appendix B : Scope of climate variables used in costing analysis

The Canadian Centre for Climate Services provided the projections of all climate indicators used in the FAO’s costing analysis. Depending on the nature of the hazard’s interaction with specific storm and wastewater infrastructure components, different climate indicators were used. See WSP’s report for a full description and rationale.[60]

Table B-1: Projected change in relevant climate variables from 1976-2005 to 2071-2100, Ontario average[61]

Note: Numbers are rounded. Median (50th percentile) projections of climate variables are presented, followed by ranges in parentheses. Ranges show the 10th and 90th percentile projections.

Source: Canadian Centre for Climate Services.

Climate Hazard	Variable	Definition	Low Emissions (RCP2.6)	Medium Emissions (RCP4.5)	High Emissions (RCP8.5)
Extreme Rainfall	IDF 24-hour 1:2	Short duration rainfall intensity for a 24-hour 1-in-2-year event	+15 per cent (+10 to 24 per cent)	+25 per cent (+16 to 39 per cent)	+53 per cent (+38 to 78 per cent)
	IDF 24-hour 1:100	Short duration rainfall intensity for a 24-hour 1-in-100-year event	+15 per cent (+10 to 24 per cent)	+25 per cent (+16 to 39 per cent)	+53 per cent (+38 to 78 per cent)
	Maximum 5-day precipitation	Maximum amount of precipitation within a year received during five consecutive days	+9 per cent (+8 to 12 per cent)	+11 per cent (+9 to 14 per cent)	+19 per cent (+13 to 20 per cent)
	Gravity sewer index[62]	0.5 * per cent change in IDF 24-hour 1-in-2-year event + 0.5 * per cent change in maximum 5-day precipitation	+12 per cent (+9 to 18 per cent)	+18 per cent (+13 to 27 per cent)	+36 per cent (+25 to +49 per cent)

The full suite of climate data used in the CIPI project is available on the FAO’s website at https://www.fao-on.org/en/cipi.

Appendix C : The impact of extreme rainfall on linear storm and wastewater infrastructure

This appendix presents the impact of extreme rainfall on the key infrastructure costs for stormwater culverts, stormwater ditches, stormwater pipes, wastewater force mains and wastewater sewer pipes. The appendix presents the total impact of extreme rainfall on operations and maintenance (O&M) spending and useful service life (where applicable) in the absence of adaptation, as well as the costs of adapting this infrastructure to prevent these climate-related impacts.

To establish relationships between relevant climate indicators and key infrastructure costs, the FAO worked with WSP, a large engineering firm with expertise in all aspects of public sector infrastructure, including asset management, public infrastructure construction and operations, and climate change impacts.

At the start of the CIPI project, the FAO and WSP established which climate hazards within the project’s scope (extreme heat, extreme rainfall and freeze-thaw cycles) could have the most significant impact on each asset type. As each hazard would interact with each asset type in a different way, it was agreed that WSP would focus attention on the “interactions” that could present the greatest financial impact to asset managers.

WSP then estimated relationships between changing extreme rainfall variables and infrastructure costs by surveying the relevant engineering experts. To account for engineering uncertainty, WSP aggregated its responses and provided optimistic, pessimistic and most-likely cost relationships.[63] This forms the basis on which the FAO estimated the additional costs of climate hazards to linear storm and wastewater infrastructure in Ontario.[64] ­­

While regional climate projections were used to develop the FAO’s infrastructure cost estimates, for simplicity this appendix presents Ontario-average infrastructure cost results by asset type. The results reflect a weighted average climate projection based on the proportion of assets (by CRV) located in each region.[65] The figures below provide three estimates for each infrastructure cost impact in the medium and high emissions scenarios:

• The solid lines represent the most likely infrastructure cost impact for the 50th percentile climate projection.
• The upper limit of the uncertainty bands represents the pessimistic infrastructure cost impact for the 90th percentile climate projection.
• The lower limit of the uncertainty bands represents the optimistic infrastructure cost impacts of the 10th percentile climate projection.

Figure C-1 : Stormwater culverts - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO.

Accessible version

In Absence of Adaptation Useful Service Life No meaningful impact on asset’s USL. Operations & Maintenance O&M spending as a share of CRV of stormwater culverts is projected to rise due to increases in extreme rainfall. In the medium emissions scenario, O&M spending is projected to increase by 1.0 percentage point of CRV by the end of the century. In the high emissions scenario, O&M spending is projected to increase by 2.5 percentage points of CRV by the end of the century. For a culvert with a CRV of $1 million,* the annual O&M spending in a “stable climate” is estimated to be $10,000 (1 per cent of CRV) per year. However, by 2100, the annual O&M spending is projected to be approximately $20,000 in the medium emissions scenario and $35,000 in the high emissions scenario (in real 2020 dollars). Adaptation Costs** The cost of adapting an average stormwater culvert to withstand extreme rainfall increases will vary with the extent of these increases. In the medium emissions scenario, the cost of adapting is projected to be 35 per cent of CRV by 2100. In the high emissions scenario, the cost of adapting is projected to be 85 per cent of CRV by 2100. If a culvert has an original CRV of $1 million, adapting this asset to the projected climate condition in 2100 will cost approximately $350,000 in the medium emissions scenario and $850,000 in the high emissions scenario (in real 2020 dollars) in addition to the original $1M replacement cost.

Figure C-2: Stormwater ditches - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO.

Accessible version

In Absence of Adaptation Useful Service Life No meaningful impact on asset’s USL. Operations & Maintenance Increases in extreme rainfall are projected to raise O&M spending (as a share of CRV) of stormwater ditches in Ontario in both emissions scenarios. In the medium emissions scenario, O&M spending is projected to increase by 1.0 percentage point of CRV by the end of the century. In the high emissions scenario, O&M spending is projected to increase by 2.5 percentage points of CRV by the end of the century. For a length of ditch with a CRV of $1 million,* the annual O&M spending in “stable climate” is estimated to be $10,000 (1 per cent of CRV) per year. However, by 2100, the annual O&M spending is projected to be approximately $20,000 in the medium emissions scenario and $35,000 in the high emissions scenario (in real 2020 dollars). Adaptation Costs** The cost of adapting the average stormwater ditch to withstand extreme rainfall increases will vary with the extent of these increases. In the medium emissions scenario, the cost of adapting is projected to be 31 per cent of CRV by 2100. In the high emissions scenario, the cost of adapting is projected to be 74 per cent of CRV by 2100. If a length of ditch has a CRV of $1 million, adapting this asset to the projected climate condition in 2100 will cost approximately $310,000 in the medium emissions scenario and $740,000 in the high emissions scenario (in real 2020 dollars) in addition to the original $1M replacement cost.

Figure C-3: Stormwater pipes - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO.

Accessible version

In Absence of Adaptation Useful Service Life No meaningful impact on asset’s USL. Operations & Maintenance Trends in extreme rainfall are projected to increase O&M spending (as a share of CRV) of stormwater pipes in Ontario in both emissions scenarios. In the medium emissions scenario, O&M spending is projected to increase by 2.1 percentage points of CRV by the end of the century. In the high emissions scenario, O&M spending is projected to increase by 5.1 percentage points of CRV by the end of the century. For a length of pipe with a CRV of $1 million,* the annual O&M spending in a “stable climate” is estimated to be $10,000 (1 per cent of CRV) per year. However, by 2100, the annual O&M spending is projected to be approximately $31,000 in the medium emissions scenario and $61,000 in the high emissions scenario (in real 2020 dollars). Adaptation Costs** The cost of adapting the average stormwater pipe to withstand future trends in extreme rainfall will vary with the extent of these increases. In the medium emissions scenario, the cost of adapting the average stormwater pipe is projected to be 31 per cent of CRV by 2100. In the high emissions scenario, the cost of adapting the average stormwater pipe is projected to be 75 per cent of CRV by 2100. If a length of pipe has a CRV of $1 million, adapting the asset to the projected climate condition in 2100 will cost approximately $310,000 in the medium emissions scenario and $750,000 in the high emissions scenario (in real 2020 dollars) in addition to the original $1M replacement cost.

Figure C-4: Wastewater sanitary force mains - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO.

Accessible version

In Absence of Adaptation Useful Service Life Trends in extreme rainfall are projected to reduce the USL of sanitary force mains in Ontario in both emissions scenarios. In the medium emissions scenario, the USL is projected to decline by 6 per cent by the end of the century. In the high emissions scenario, the USL is projected to decline by 14 per cent by the end of the century. For a sanitary force main with a USL of 128 years, the USL by 2100 will be reduced to 121 years in the medium emissions scenario and to 110 years in the high emissions scenario. Operations & Maintenance Trends in extreme rainfall are projected to increase O&M spending (as a share of CRV) of stormwater pipes in Ontario in both emissions scenarios. In the medium emissions scenario, O&M spending is projected to increase by 2.1 percentage points of CRV by the end of the century. In the high emissions scenario, O&M spending is projected to increase by 5.1 percentage points of CRV by the end of the century. For a length of pipe with a CRV of $1 million,* the annual O&M spending in a “stable climate” is estimated to be $10,000 (1 per cent of CRV) per year. However, by 2100, the annual O&M spending is projected to be approximately $31,000 in the medium emissions scenario and $61,000 in the high emissions scenario (in real 2020 dollars). Adaptation Costs** The cost of adapting the average stormwater pipe to withstand future trends in extreme rainfall will vary with the extent of these increases. In the medium emissions scenario, the cost of adapting the average stormwater pipe is projected to be 31 per cent of CRV by 2100. In the high emissions scenario, the cost of adapting the average stormwater pipe is projected to be 75 per cent of CRV by 2100. If a length of pipe has a CRV of $1 million, adapting the asset to the projected climate condition in 2100 will cost approximately $310,000 in the medium emissions scenario and $750,000 in the high emissions scenario (in real 2020 dollars) in addition to the original $1M replacement cost.

Figure C-5: Wastewater sewer pipes - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO.

Accessible version

In Absence of Adaptation Useful Service Life No meaningful impact on asset’s USL. Operations & Maintenance Increases in extreme rainfall are projected to raise O&M spending (as a share of CRV) of wastewater sewer pipes in Ontario in both emissions scenarios. In the medium emissions scenario, O&M spending is projected to increase by 0.6 percentage point of CRV by the end of the century. In the high emissions scenario, O&M spending is projected to increase by 1.6 percentage points by the end of the century. For a sewer pipe with a CRV of $1 million,* the annual O&M spending in a “stable climate” is estimated to be $10,000 (1 per cent of CRV) per year. However, by 2100, annual O&M spending is projected to be approximately $15,000 in the medium emissions scenario and $25,000 in the high emissions scenario (in real 2020 dollars). Adaptation Costs The cost of adapting the average wastewater sewer pipe to withstand the increases in extreme rainfall will vary with the extent of these increases. In the medium emissions scenario, the cost of adapting an average sewer pipe is projected to be 18 per cent of CRV by 2100. In the high emissions scenario, the cost of adapting an average asset is projected to be 49 per cent of CRV by 2100. For a length of sewer pipe with a CRV of $1 million, adapting the asset to the projected climate condition in 2100s will cost approximately $180,000 in the medium emissions scenario and $490,000 in the high emissions scenario (in real 2020 dollars) in addition to the original $1M replacement cost.

Appendix D : Comparing the present value costs of different asset management strategies

Each asset management strategy has a different cost profile over time (see Chapter 6). The proactive adaptation strategy sees higher costs earlier in the century, while the no adaptation and reactive adaptation strategies see costs rise significantly in the latter part of the century. When evaluating alternative long-term financial decisions where the timing of costs varies, a standard approach is to discount real costs into present value dollars using a real discount rate. When discounted, costs incurred further in the future carry less weight relative to costs incurred sooner.

This appendix presents how the choice of discount rates impacts the present value of the costs of the three asset management strategies presented in the report. The discounted costs only highlight the implications of choosing different discount rates and should not be interpreted as a comprehensive cost-benefit analysis.

Evaluating the financial implications of asset-specific adaptation decisions should consider a wider range of societal costs and asset-specific factors that were beyond the scope of this analysis. The discounted results presented below should be viewed in consideration of the following limitations:

• The adaptation costs include the costs needed to upgrade the capacity of storm and wastewater infrastructure to mitigate the risks of flooding damage. However, the costs of flooding damage to households, businesses and government as well as the broader costs of impaired level of service were excluded from the analysis.
• The comparison only includes the impacts of extreme rainfall and excludes other hazards (such as permafrost degradation).
• The results reflect the median projections for the medium and high emissions projections, but exclude the other possible outcomes as estimated by the climate and engineering uncertainties presented throughout the report.
• While this appendix presents a range of discount rates, the appropriate discount rate for evaluating long-term financial decisions about climate change is subject to significant debate.[66] In a paper surveying over 200 experts, recommended discount rates ranged from zero to 10 per cent, with a median value of 2.3 per cent. Despite the wide range of recommended rates, over 90 per cent of respondents indicated they were comfortable with a rate between one and three per cent.[67]

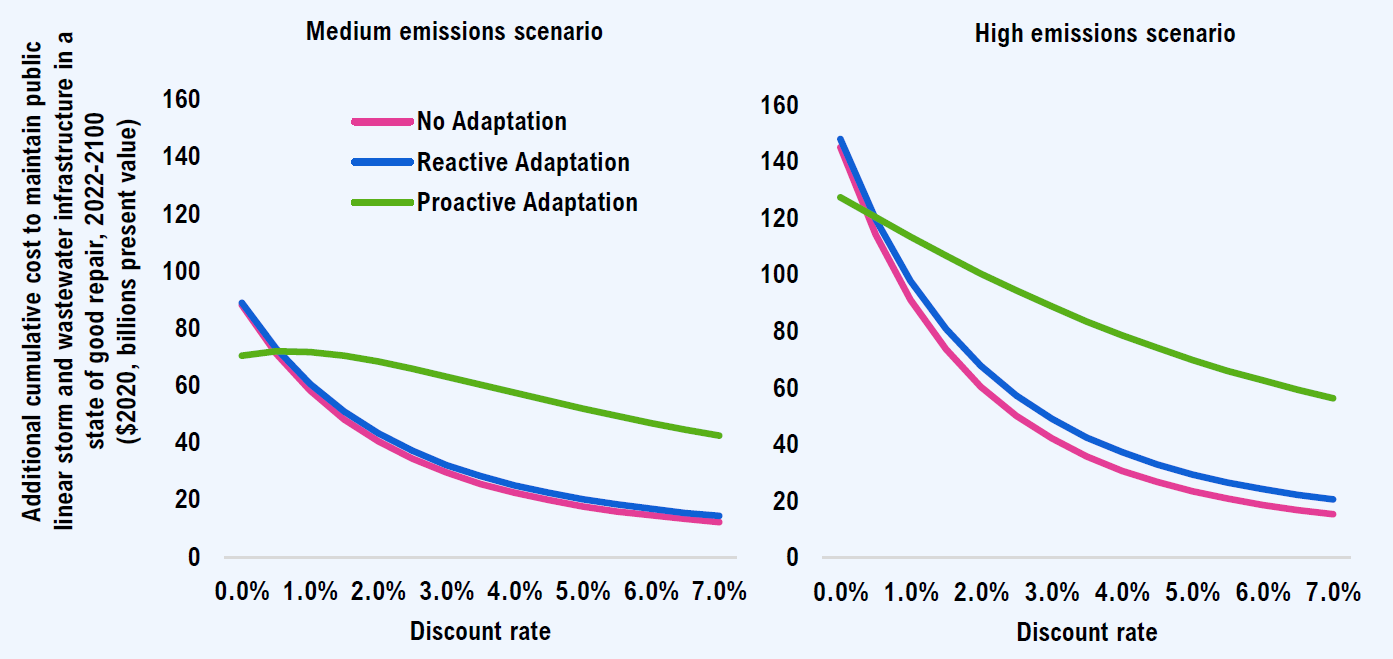

Figure D-1 shows how the choice of a discount rate impacts the present value of the total cost estimates for the median climate projections.

Appendix E : Costing results in the low emissions scenario

While the report focused on the medium and high emissions scenarios, Appendix E presents the costing results of the three adaptation strategies for all emissions scenarios. The additional climate-related costs in each emissions scenario are presented as cumulative summations over the century.

In the low emissions scenario, a major and immediate turnaround in global climate policies is assumed. Emissions are projected to peak in the early 2020s and decline to zero by the 2080s, limiting the rise in global mean temperatures to 1.6°C (0.8 to 2.4°C) by 2100 compared to the pre-industrial average.[68] Even in the low emissions scenario, changes in extreme rainfall will still have material financial impacts, and would raise the costs of maintaining Ontario’s public storm and wastewater infrastructure assets by $61 billion (26 per cent above baseline) to 2100 in the absence of adaptation (median projection).

Appendix F : Breakdown of cumulative costs under different adaptation strategy by asset categories

Table F-1: Stormwater

Source: FAO.

			Cumulative Additional Costs (2022-2100)
Emissions Scenario	Estimate	Base	No Adaptation ($ Billions)	Reactive Adaptation ($ Billions)	Proactive Adaptation ($ Billions)
Medium	Low	$97	$21	$23	$26
			(22%)	(24%)	(27%)
	Median		$57	$51	$46
			(59%)	(53%)	(47%)
	High		$103	$92	$77
			(107%)	(95%)	(80%)
High	Low		$38	$43	$47
			(40%)	(44%)	(49%)
	Median		$95	$84	$77
			(98%)	(86%)	(80%)
	High		$160	$140	$126
			(165%)	(145%)	(130%)

Table F-2: Wastewater

Source: FAO.

			Cumulative Additional Costs (2022-2100)
Emissions Scenario	Estimate	Base	No Adaptation ($ Billions)	Reactive Adaptation ($ Billions)	Proactive Adaptation ($ Billions)
Medium	Low	$143	$23	$26	$15
			(16%)	(18%)	(10%)
	Median		$31	$38	$25
			(22%)	(27%)	(17%)
	High		$63	$72	$50
			(44%)	(51%)	(35%)
High	Low		$39	$46	$31
			(27%)	(32%)	(22%)
	Median		$50	$64	$50
			(35%)	(45%)	(35%)
	High		$98	$115	$91
			(68%)	(81%)	(64%)

8 | References

Asset Management BC. (n.d.). Climate Change and Asset Management: A Sustainable Service Delivery Primer. Retrieved from https://www.assetmanagementbc.ca/wp-content/uploads/The-BC-Framework_Primer-on-Climate-Change-and-Asset-Management.pdf

Boyd , R., & Markandya, A. (2021). Cost and Benefits of Climate Change Impacts and Adaptation: National Issues Report. Government of Canada, Ottawa. Retrieved from https://www.nrcan.gc.ca/sites/nrcan/files/GNBC/Chapter%206_Costs%20and%20Benefits%20of%20Climate%20Change%20Impacts%20and%20Adaptation_Final_EN.pdf

Canadian Infrastructure. (2019). Wastewater Collection and Treatment - The Canadian Infrastructure Report Card. Retrieved from http://canadianinfrastructure.ca/en/waste-water.html

Canadian Infrastructure. (2019). Stormwater Management - The Canadian Infrastructure Report Card. Retrieved from http://canadianinfrastructure.ca/en/storm-water.html

Canadian Institute for Climate Choices. (2022). Under Water: The Costs of Climate Change for Canada’s Infrastructure. Retrieved from https://climatechoices.ca/wp-content/uploads/2021/09/Infrastructure-English-FINAL-jan17-2022.pdf

Cannon, A. J., Jeong, D. I., Zhang, X., & Zwiers, F. W. (2020). Climate-Resilient Buildings and Core Public Infrastructure: An Assessment of the Impact of Climate Change on Climatic Design Data in Canada. Government of Canada, Environment and Climate Change Canada, Gatineau. Retrieved from https://publications.gc.ca/collections/collection_2021/eccc/En4-415-2020-eng.pdf

City of London. (2019). Corporate Asset Management Plan. London. Retrieved from https://london.ca/sites/default/files/2020-10/AMP%20-%20Interactive%20Format-%20all%20sections_2019-08-27_AODAv4.2%20%281%29.pdf

City of Toronto. (2009). Design Criteria for Sewers and Watermains. Toronto. Retrieved from https://www.toronto.ca/wp-content/uploads/2017/11/9753-ecs-specs-dcm-Toronto_Sewer_and_Watermain_Manual_March2014.pdf

City of Toronto. (2014). Staff Report: Impacts from the December 2013 Extreme Winter Strom Event on the City of Toronto. Retrieved from https://www.toronto.ca/legdocs/mmis/2013/ex/bgrd/backgroundfile-61502.pdf

City of Toronto. (2021). Design Criteria for Sewers and Watermains. Toronto. Retrieved from https://www.toronto.ca/wp-content/uploads/2021/01/8d16-ecs-specs-dcm-design-criteria-sewers-watermains-Jan2021.pdf

City of Toronto. (n.d.). Ditches. Retrieved from https://www.toronto.ca/services-payments/streets-parking-transportation/road-maintenance/ditches/#:~:text=Ditches%20are%20linear%2C%20sodded%20excavations,corridors%2C%20residential%20and%20industrial%20areas

City of Toronto. (n.d.). The Sewers on the Street. Retrieved from https://www.toronto.ca/services-payments/water-environment/managing-rain-melted-snow/what-is-stormwater-where-does-it-go/the-sewers-on-the-street/

City of Windsor. (2020). Degrees of Change: Climate Change Adaptation Plan. Retrieved from https://icleicanada.org/wp-content/uploads/2020/03/S-20_2020-Climate-Change-Adaptation-Plan-FINAL-Feb-19-2020.pdf

Drupp, M. A., Freeman, M. C., Groom, B., & Nesje, F. (2015). Discounting Disentangled. University of Leeds and London School of Economics and Political Science, Centre for Climate Change Economics and Policy and the Grantham Research Institute on Climate Change and Environment. Retrieved from https://www.lse.ac.uk/granthaminstitute/wp-content/uploads/2015/06/Working-Paper-172-Drupp-et-al.pdf

Engineers Canada. (2018). Developing a Stormwater Quality Management Standard (QMS) in Light of Climate Change. Toronto. Retrieved from https://www.scc.ca/en/system/files/publications/SCC_RPT_SW-QMS_EN.pdf

Federation of Canadian Municipalities. (2020). Investing in Canada’s Future: The Cost of Climate Adaptation at the Local Level. Retrieved from http://assets.ibc.ca/Documents/Disaster/The-Cost-of-Climate-Adaptation-Report-EN.pdf

Financial Accountability Office of Ontario. (2020). Provincial Infrastructure. Retrieved from /Blog/Publications/provincial-infrastructure-2020

Financial Accountability Office of Ontario. (2021). Costing Climate Change Impacts to Public Infrastructure: Project Backgrounder and Methodology. Toronto. Retrieved from /Blog/Publications/cipi-backgrounder

Financial Accountability Office of Ontario. (2021). Municipal Infrastructure. Toronto. Retrieved from /Blog/Publications/municipal-infrastructure-2021

Financial Accountability Office of Ontario. (2021). Costing Climate Change Impacts to Public Infrastructure: Assessing the financial impacts of extreme rainfall, extreme heat and freeze-thaw cycle on public buildings in Ontario. Toronto. Retrieved from /Blog/Publications/cipi-buildings

Financial Information Return. (n.d.). Provincial Summary. Retrieved October 28, 2022, from https://efis.fma.csc.gov.on.ca/fir/index.php/en/open-data/provincial-summary/

Gaur, A., Gaur, A., Yamazaki, D., & Simonovic, S. P. (2019). Flooding related consequences of climate change on Canadian cities and flow regulation infrastructure. Water, 11(1), 63. Retrieved from https://www.mdpi.com/2073-4441/11/1/63/htm

Globe Staff. (2021). Are B.C.’s flood defences holding? What you need to know about forecasts, road closings and more. The Globe and Mail. Retrieved from https://www.theglobeandmail.com/canada/british-columbia/article-bc-fears-new-floods-as-storms-return-heres-what-you-need-to-know-about/#transport

Government of Canada. (2021, February 1). Climate Change and Public Health Factsheets. Retrieved from https://www.canada.ca/en/public-health/services/health-promotion/environmental-public-health-climate-change/climate-change-public-health-factsheets-floods.html

Green Analytics Corp. and Ontario Centre for Climate Impacts and Adaptation Resources. (2015). The Economic Impacts of the Weather Effects of Climate Change on Communities. Retrieved from http://assets.ibc.ca/Documents/Studies/IBC-The-Economic-Impacts.pdf

Hamilton. (2022). Waterworks Asset Management Plan. Hamilton. Retrieved from https://www.hamilton.ca/sites/default/files/2022-09/waterworks-asset-management-plan.pdf

Infrastructure Canada. (2019). Climate Lens. Government of Canada. Retrieved from https://www.infrastructure.gc.ca/pub/other-autre/cl-occ-eng.html#3

Insurance Bureau of Canada. (2018, September 7). Toronto Flood Causes Over $80 Million in Insured Damage. Toronto. Retrieved from http://www.ibc.ca/on/resources/media-centre/media-releases/toronto-flood-causes-over-80-million-in-insured-damage

Intergovernmental Panel on Climate Change. (2013). Annex II: Climate System Scenario Tables. In Climate Change 2013: The Physical Science Basis. Retrieved from https://www.ipcc.ch/site/assets/uploads/2017/09/WG1AR5_AnnexII_FINAL.pdf

Intergovernmental Panel on Climate Change. (2014). Climate Change 2014: Synthesis Report. Geneva. Retrieved from https://ar5-syr.ipcc.ch/ipcc/ipcc/resources/pdf/IPCC_SynthesisReport.pdf

Intergovernmental Panel on Climate Change. (2021). Summary for Policymakers. In Climate Change 2021: The Physical Science Basis. Retrieved from https://www.ipcc.ch/report/ar6/wg1/downloads/report/IPCC_AR6_WGI_SPM.pdf

Intergovernmental Panel on Climate Change. (2014). Chapter 17: Economics of Adaptation. In Climate Change 2014: Impacts, Adaptation, and Vulnerability. Retrieved from https://www.ipcc.ch/site/assets/uploads/2018/02/WGIIAR5-Chap17_FINAL.pdf

International Institute of Sustainable Development. (2021). Advancing the Climate Resilience of Canadian Infrastructure: A review of literature to inform the way forward. Retrieved from https://www.iisd.org/system/files/2021-07/climate-resilience-canadian-infrastructure-en.pdf

Lu, D., Tighe, S. L., & Xie, W. C. (2018). Impact of flood hazards on pavement performance. International Journal of Pavement Engineering. Retrieved from https://www.researchgate.net/profile/Donghui_Lu/publication/327144278_Impact_of_flood_hazards_on_pavement_performance/links/5b9fb74592851ca9ed11a06c/Impact-of-flood-hazards-on-pavement-performance.pdf

Nicholson, M. (2021). Hundreds of thousands of farm animals die in B.C. floods: The agricultural region of Sumas Prairie, near Vancouver, is one of the hardest hit flood zones. Financial Post. Retrieved from https://financialpost.com/commodities/agriculture/farm-animals-died-by-the-hundreds-of-thousands-in-canada-floods

Office of the Parliamentary Budget Officer. (2016). Estimate of the Average Annual Cost for Disaster Financial Assistance Arrangements due to Weather Events. Ottawa. Retrieved from https://qsarchive-archiveqs.pbo-dpb.ca/web/default/files/Documents/Reports/2016/DFAA/DFAA_EN.pdf

Organization for Economic Cooperation and Development (OECD). (2018). Climate-resilient Infrastructure. Retrieved from https://www.oecd.org/environment/cc/policy-perspectives-climate-resilient-infrastructure.pdf

Pacific Climate Impacts Consortium. (2021). PCIC Science Brief: Should the RCP 8.5 emissions scenario represent “business as usual?”. Victoria. Retrieved from https://www.pacificclimate.org/sites/default/files/publications/Science_Brief_39-June_2021-final.pdf

Region of Peel. (2022). Enterprise Asset Management Plan. Retrieved from https://www.peelregion.ca/finance/_media/2021-enterprise-asset-management-plan.pdf

Region of Peel. (n.d.). Sewer Systems. Retrieved from https://www.peelregion.ca/water/your-home/sewer-systems.asp

Township of Muskoka Lakes. (2019). Drainage Maintenance. Retrieved from https://www.muskokalakes.ca/en/residents/drainage-maintenance.aspx#Bridges-Culverts

United Nations Environment Program (UNEP). (2021). Buildings and Climate Change Adaptation: A Call to Action. Retrieved from https://globalabc.org/resources/publications/buildings-and-climate-change-adaptation-call-action

United Nations Framework Convention on Climate Change. (2011). Assessing the Costs and Benefits of Adaptation Options. Retrieved from https://unfccc.int/resource/docs/publications/pub_nwp_costs_benefits_adaptation.pdf

Warren, F. J., & Lemmen, D. S. (2014). Canada in a Changing Climate: Sector Perspectives on Impacts and Adaptation. Government of Canada, Natural Resources Canada, Ottawa. Retrieved from https://www.nrcan.gc.ca/sites/www.nrcan.gc.ca/files/earthsciences/pdf/assess/2014/pdf/Full-Report_Eng.pdf

Warren, F., & Lulham, N. (2021). Canada in a Changing Climate: National Issues. Government of Canada, Ottawa. Retrieved from https://www.nrcan.gc.ca/sites/nrcan/files/pdf/National_Issues_Report_Final_EN.pdf

WSP. (2021). Costing climate change impacts and adaptation for provincial and municipal public infrastructure in Ontario, Deliverable #10 - Final Report. Toronto. Retrieved from /web/default/files/publications/CIPI-wsp/cipi-wsp-report.pdf

---

About This Document

Established by the Financial Accountability Officer Act, 2013, the Financial Accountability Office (FAO) provides independent analysis on the state of the Province’s finances, trends in the provincial economy and related matters important to the Legislative Assembly of Ontario.

This report was prepared by Sabrina Afroz, Nicolas Rhodes and Jay Park under the direction of Edward Crummey. This report benefitted from contributions from Eklavya Jain, Christina Rachmadita, Mavis Yang, Katrina Talavera, Laura Irish, Paul Lewis and David West. External reviewers were provided with earlier drafts of this report for their comments. However, the input of external reviewers implies no responsibility for this final report, which rests solely with the FAO.

In keeping with the FAO’s mandate to provide the Legislative Assembly of Ontario with independent economic and financial analysis, this report makes no policy recommendations.

---

Graphical Descriptions

Figure 1-1: CIPI project timeline

Source: FAO.

Back to image

Release Date	Report Title
Previously Released	Provincial Infrastructure
	Municipal Infrastructure
	CIPI Project Backgrounder and Methodology
	WSP Report
	Public Buildings and Facilities
	Public Transportation Infrastructure
Current Report	Public Linear Storm and Wastewater Infrastructure
Upcoming in 2023	Summary Report

Figure 3-1: Ontario’s municipal portfolio of linear storm and wastewater infrastructure has an estimated Current Replacement Value of $124 billion

Note: CRV estimates are in real 2020 billion dollars. Percentage values refer to a sector’s share of total CRV.

Source: FAO.

Back to image

Sector		CRV ($ Billions)	Share
Stormwater	Culverts	$8	6%
	Ditches	$6	5%
	Pipes	$39	31%
Wastewater	Sanitary force mains	$3	3%
	Sewer pipes	$68	55%

Figure 3-3: Maintaining Ontario’s public storm and wastewater infrastructure in a stable climate would have cost $3.0 billion per year

Source: FAO.

Back to image

	Short Term (2022-2030)	Mid century (2031-2070)	Late century (2071-2100)	2022-2100 Average
Average annual infrastructure spending (real $2020, billions)	$2.6	$2.5	$3.9	$3.0

Figure 4-1: Changing climate hazards in Ontario

Source: Canadian Centre for Climate Services.

Back to image

Ontario IDF 24-hour 1:2 (mm)	Low emissions scenario			Medium emissions scenario			High emissions scenario
	Low	Median	High	Low	Median	High	Low	Median	High
2001-2030	51	52	53	51	52	53	51	52	53
2011 - 2040	52	53	55	52	53	55	52	54	56
2021-2050	52	54	56	53	55	58	53	56	58
2031-2060	52	55	58	54	56	60	55	59	62
2041-2070	53	55	59	55	58	63	58	62	67
2051-2080	52	55	60	55	59	65	61	66	73
2061-2090	53	55	60	55	60	67	64	70	79
2071-2100	53	55	59	56	60	67	66	73	86
Ontario IDF 24-hour 1:100 (mm)	Low emissions scenario			Medium emissions scenario			High emissions scenario
	Low	Median	High	Low	Median	High	Low	Median	High
2001-2030	109	111	114	109	111	113	109	112	113
2011 - 2040	111	113	118	111	115	119	111	116	121
2021-2050	113	115	121	114	118	124	114	121	126
2031-2060	112	118	124	116	120	129	119	126	134
2041-2070	113	118	128	118	124	135	125	134	144
2051-2080	113	119	129	119	126	140	131	142	158
2061-2090	114	118	128	119	128	144	137	150	170
2071-2100	113	118	127	120	129	144	142	158	184
Ontario maximum 5-day precipitation (mm)	Low emissions scenario			Medium emissions scenario			High emissions scenario
	Low	Median	High	Low	Median	High	Low	Median	High
2001-2030	54	57	60	55	57	59	54	57	59
2011 - 2040	55	57	61	56	58	60	55	58	60
2021-2050	56	58	62	56	58	61	55	59	62
2031-2060	56	59	62	55	59	62	56	60	63
2041-2070	57	59	62	56	60	63	57	61	64
2051-2080	56	59	62	56	60	64	57	62	65
2061-2090	56	58	63	57	61	63	58	63	66
2071-2100	56	59	63	57	60	64	59	64	67

Figure 4-2: Examples of how more extreme rainfall will impact linear storm and wastewater infrastructure

Note: For more examples of how these climate hazards impact water infrastructure, see CIPI: WSP Engineering Report, 2021.

Source: WSP.

Back to image

Sector		Examples
Stormwater	Culvert	More frequent clearing of debris and sediments resulting from increased water flow. Channel protection will also be subject to accelerated erosion.
	Ditch	More frequent clearing of debris, shape and slope maintenance, and vegetation pruning to convey increased amounts of stormwater.
	Pipe	More frequent and costly inspections and preventive maintenance, as more debris, sediment and vegetation are expected to enter stormwater systems.
Wastewater	Sanitary force main	Higher inflow and infiltration, increasing the volume of wastewater being conveyed to treatment facilities, as well as the pressure required to do so. The increased need for pumping results in greater friction and stress on joints, as well as corrosion, accelerating the deterioration of these assets.
	Sewer pipe	More frequent inspections, maintenance, and clearing of debris required due to increased inflow and infiltration. Impacts on older and combined sewer systems are likely to be more severe.

Figure 4-3: Changing climate hazards will raise the cost of maintaining the current portfolio of public storm and wastewater infrastructure in the absence of adaptation

Note: Uncertainty ranges are omitted from this chart for presentation purposes.

Source: FAO.

Back to image

Emissions Scenario	Average annual infrastructure spending (real $2020, billions)	2022-2030	2031-2070	2071-2100	2022-2100
Medium (Median projection)	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$0.6	$1.0	$1.4	$1.1
High (Median projection	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$0.7	$1.4	$2.8	$1.8

Figure 4-4: Uncertainty ranges around annual climate-related costs widen over time

Note: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario.

Source: FAO.

Back to image

		Average annual climate-related costs (real $2020, billions)
Emissions Scenario	Projection	2022-2030	2031-2070	2071-2100
Medium	Low	$0.4	$0.5	$0.7
	Median	$0.6	$1.0	$1.4
	High	$1.2	$2.0	$2.5
High	Low	$0.4	$0.8	$1.5
	Median	$0.7	$1.4	$2.8
	High	$1.2	$2.5	$5.0

Figure 4-5: In the absence of adaptation, climate-related costs accumulate to significant sums by 2100

Source: FAO.

Back to image

Emissions Scenario	Cost type	Projection	Cumulative spending by 2100 (real $2020, billions)
Medium	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$45
		Median	$88
		High	$166
High	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$78
		Median	$145
		High	$258

Figure 5-1: Ontario’s linear storm and wastewater infrastructure assets have long remaining useful service lives

Source: FAO.

Back to image

Remaining useful service life	Share of stormwater and wastewater assets by CRV (Per cent)
0-20 years	1
20-40 years	12
40-60 years	48
60-80 years	39

Figure 5-2: Examples of adaptations to extreme rainfall for linear storm and wastewater infrastructure

Note: For more examples of how linear storm and wastewater infrastructure components can be adapted to climate hazards, see CIPI: WSP Engineering Report, 2021.

Source: WSP.

Back to image

Sector		Examples
Stormwater	Culvert	Upsize using a combination of larger pipes, twinned pipes and/or incorporate source control measures.
	Ditch	Dig out ditches and reinforce using concrete or geotextiles.
	Pipe	Upsize to larger pipes/twinned pipes, and/or incorporate source control measures and green infrastructure solutions to reduce and slow down stormwater.
Wastewater	Sanitary force main	Upsize to larger pipes and increase the capacity of force mains, as inflows from the gravity system could increase loads downstream.
	Sewer pipe	Upsize to a larger pipe and/or incorporate source control measures such as green infrastructure to help control the infiltration of stormwater flow into gravity sewer.

Figure 5-3: The proactive adaptation strategy has a faster pace of adaptation over the century

Note: The results presented are based on the average results for the median (or 50th percentile) projection in the medium and high emissions scenarios. Uncertainty bands are omitted from this figure for presentation purpose.

Source: FAO.

Back to image

Proportion of adapted public linear storm and wastewater infrastructure by CRV
Year	Reactive adaptation	Proactive adaptation
2022	9	10
2023	10	12
2024	10	13
2025	10	14
2026	10	16
2027	10	21
2028	10	29
2029	10	32
2030	10	33
2031	10	34
2032	10	35
2033	10	35
2034	10	36
2035	10	39
2036	10	40
2037	10	41
2038	10	44
2039	10	45
2040	10	47
2041	10	54
2042	10	60
2043	10	65
2044	10	69
2045	10	70
2046	10	72
2047	10	72
2048	10	72
2049	10	72
2050	10	73
2051	10	73
2052	11	73
2053	12	87
2054	12	91
2055	13	91
2056	13	92
2057	13	92
2058	15	93
2059	16	93
2060	16	93
2061	20	93
2062	27	93
2063	30	93
2064	30	93
2065	31	93
2066	31	93
2067	34	95
2068	34	95
2069	41	99
2070	43	100
2071	44	100
2072	44	100
2073	45	100
2074	46	100
2075	48	100
2076	54	100
2077	60	100
2078	64	100
2079	66	100
2080	68	100
2081	69	100
2082	70	100
2083	70	100
2084	71	100
2085	71	100
2086	72	100
2087	87	100
2088	92	100
2089	93	100
2090	95	100
2091	96	100
2092	100	100
2093	100	100
2094	100	100
2095	100	100
2096	100	100
2097	100	100
2098	100	100
2099	100	100
2100	100	100

Figure 5-4: Adaptation will raise storm and wastewater infrastructure costs, but more so in the high emissions scenario

Note: Uncertainty ranges are omitted from this chart for presentation purposes.

Source: FAO.

Back to image

Emissions Scenario	Average annual infrastructure spending (real $2020, billions)	2022-2030	2031-2070	2071-2100	2022-2100
Medium (Median projection)	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$0.9	$1.1	$1.2	$1.1
High (Median projection)	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$1.3	$1.7	$2.3	$1.9

Figure 5-5: Climate-related costs in the reactive adaptation strategy are subject to climate and engineering uncertainty

Note: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario.

Source: FAO.

Back to image

		Average annual climate-related costs (real $2020, billions)
Emissions Scenario	Projection	2022-2030	2031-2070	2071-2100
Medium	Low	$0.5	$0.6	$0.7
	Median	$0.9	$1.1	$1.2
	High	$1.6	$2.2	$2.1
High	Low	$0.7	$1.0	$1.4
	Median	$1.3	$1.7	$2.3
	High	$2.1	$3.0	$3.9

Figure 5-6: Cumulative climate-related costs in the reactive adaptation strategy to 2100

Source: FAO.

Back to image

Emissions Scenario	Cost type	Projection	Cumulative spending by 2100 (real $2020, billions)
Medium	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$49
		Median	$89
		High	$164
High	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$89
		Median	$148
		High	$256

Figure 5-7: Proactive adaptation significantly raises infrastructure costs in the short term, and lowers costs over the long term

Note: Uncertainty ranges are omitted from this chart for presentation purposes.

Source: FAO.

Back to image

Emissions Scenario	Average annual infrastructure spending (real $2020, billions)	2022-2030	2031-2070	2071-2100	2022-2100
Medium (Median projection)	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$3.4	$2.0	-$1.3	$0.9
High (Median Projection)	Stable Climate	$2.6	$2.5	$3.9	$3.0
	No adaptation strategy, additional climate-related costs	$4.4	$2.8	-$0.8	$1.6

Figure 5-8: Climate-related costs are subject to climate and engineering uncertainty

Note: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario.

Source: FAO.

Back to image

		Average annual climate-related costs (real $2020, billions)
Emissions Scenario	Projection	2022-2030	2031-2070	2071-2100
Medium	Low	$2.8	$1.6	-$1.5
	Median	$3.4	$2.0	-$1.3
	High	$4.6	$2.8	-$0.9
High	Low	$3.4	$2.1	-$1.2
	Median	$4.4	$2.8	-$0.8
	High	$6.2	$4.1	-$0.1

Figure 5-9: Cumulative climate-related costs in the proactive adaptation strategy to 2100

Source: FAO.

Back to image

Emissions Scenario	Cost type	Projection	Cumulative spending by 2100 (real $2020, billions)
Medium	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$41
		Median	$71
		High	$127
High	Stable Climate	NA	$240
	No adaptation strategy, additional climate-related costs	Low	$79
		Median	$127
		High	$217

Figure 6-2: Proactively adapting Ontario’s linear storm and wastewater infrastructure reduces flood risk at the fastest pace

Note: The results presented are based on the average results for the median (or 50th percentile) projection in the medium and high emissions scenarios. The uncertainty bands are omitted from this figure for presentation purpose.

Source: FAO.

Back to image

Share of unadapted assets by CRV (per cent)
Year	No adaptation	Proactive adaptation	Reactive adaptation
2022	100	90	91
2023	100	88	90
2024	100	87	90
2025	100	86	90
2026	100	84	90
2027	100	79	90
2028	100	71	90
2029	100	68	90
2030	100	67	90
2031	100	66	90
2032	100	65	90
2033	100	65	90
2034	100	64	90
2035	100	61	90
2036	100	60	90
2037	100	59	90
2038	100	56	90
2039	100	55	90
2040	100	53	90
2041	100	46	90
2042	100	40	90
2043	100	35	90
2044	100	31	90
2045	100	30	90
2046	100	28	90
2047	100	28	90
2048	100	28	90
2049	100	28	90
2050	100	27	90
2051	100	27	90
2052	100	27	89
2053	100	13	88
2054	100	9	88
2055	100	9	87
2056	100	8	87
2057	100	8	87
2058	100	7	85
2059	100	7	84
2060	100	7	84
2061	100	7	80
2062	100	7	73
2063	100	7	70
2064	100	7	70
2065	100	7	69
2066	100	7	69
2067	100	5	66
2068	100	5	66
2069	100	1	59
2070	100	0	57
2071	100	0	56
2072	100	0	56
2073	100	0	55
2074	100	0	54
2075	100	0	52
2076	100	0	46
2077	100	0	40
2078	100	0	36
2079	100	0	34
2080	100	0	32
2081	100	0	31
2082	100	0	30
2083	100	0	30
2084	100	0	29
2085	100	0	29
2086	100	0	28
2087	100	0	13
2088	100	0	8
2089	100	0	7
2090	100	0	5
2091	100	0	4
2092	100	0	0
2093	100	0	0
2094	100	0	0
2095	100	0	0
2096	100	0	0
2097	100	0	0
2098	100	0	0
2099	100	0	0
2100	100	0	0

Figure 6-3: Proactively adapting Ontario’s public storm and wastewater infrastructure will cost municipalities less than not adapting over the long term, and lowers flood risk more rapidly

Note: The costs presented are based on the median (or 50th percentile) projection in each emissions scenario. The costs presented in this chart are in addition to the baseline costs over the same period. The uncertainty bands are omitted from this figure for presentation purpose.

Source: FAO.

Back to image

Cumulative climate-related infrastructure spending by 2100 (real $2020, billions)	Medium emissions scenario	High emissions scenario
No adaptation, additional climate-related costs	$88	$145
Proactive adaptation, additional climate-related costs	$71	$127
Reactive adaptation, additional climate-related costs	$89	$148

Figure 6-4: Proactive adaptation has much higher upfront costs

Note: The costs presented are based on the median (or 50th percentile) projection in each emissions scenario. The costs presented in this chart are in addition to the baseline costs over the same period. The uncertainty bands are omitted from this figure for presentation purpose.

Source: FAO.

Back to image

		Cumulative climate-related infrastructure spending (real $2020, billions)
Emissions Scenario	Strategy	2022	2030	2040	2050	2060	2070	2080	2090	2100
High	Reactive adaptation	$4	$11	$21	$32	$50	$80	$111	$139	$148
	Proactive adaptation	$6	$40	$67	$118	$155	$152	$134	$117	$127
	No adaptation	$1	$7	$16	$29	$44	$62	$87	$114	$145
Medium	Reactive adaptation	$2	$8	$15	$25	$38	$54	$69	$84	$89
	Proactive adaptation	$4	$31	$51	$92	$120	$110	$88	$65	$71
	No adaptation	$1	$6	$14	$24	$36	$47	$60	$75	$88

Figure C-1: Stormwater culverts - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO

Back to image

In absence of adaptation
Operation and Maintenance
Change in O&M from projected changes in extreme rainfall (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	0.3	0.4	0.5	0.5	0.6	0.6	0.6	0.7	0.7
	Median	0.4	0.5	0.7	0.8	0.9	0.9	0.9	1.0	1.0
	High	0.9	1.1	1.4	1.7	2.0	2.1	2.1	2.1	2.0
High	Low	0.3	0.5	0.6	0.8	1.1	1.3	1.4	1.6	1.8
	Median	0.5	0.6	0.8	1.1	1.3	1.6	1.9	2.2	2.5
	High	0.9	1.2	1.6	2.1	2.8	3.3	4.0	4.6	5.3
Adaptation Costs**
Adaptation cost as a share of CRV* (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	9	12	15	16	17	18	19	21	22
	Median	14	18	23	26	29	31	32	34	35
	High	23	29	36	43	51	55	54	53	51
High	Low	10	14	19	25	32	38	43	48	54
	Median	17	22	28	36	45	55	65	74	85
	High	23	31	42	55	71	86	102	119	137

Figure C-2: Stormwater ditches - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO

Back to image

In absence of adaptation
Operation and Maintenance
Change in O&M from projected changes in extreme rainfall (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.4
	Median	0.4	0.5	0.7	0.8	0.9	0.9	1.0	1.0	1.0
	High	0.6	0.8	1.0	1.1	1.3	1.4	1.4	1.4	1.3
High	Low	0.2	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
	Median	0.5	0.6	0.8	1.1	1.3	1.6	1.9	2.2	2.5
	High	0.6	0.8	1.1	1.4	1.9	2.2	2.7	3.1	3.6
Adaptation Costs**
Adaptation cost as a share of CRV* (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	7	10	12	13	14	14	16	17	18
	Median	13	16	20	23	25	27	28	29	31
	High	22	29	36	42	50	54	53	52	50
High	Low	8	11	15	20	25	30	35	39	43
	Median	15	19	24	31	39	48	56	65	74
	High	23	30	41	53	70	84	100	116	134

Figure C-3: Stormwater pipes - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO

Back to image

In absence of adaptation
Operation and Maintenance
Change in O&M from projected changes in extreme rainfall (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	0.3	0.4	0.5	0.5	0.6	0.6	0.7	0.7	0.7
	Median	0.9	1.1	1.4	1.6	1.7	1.8	1.9	2.0	2.1
	High	1.5	1.9	2.4	2.9	3.4	3.7	3.6	3.5	3.4
High	Low	0.3	0.5	0.6	0.9	1.1	1.3	1.5	1.7	1.8
	Median	1.0	1.3	1.7	2.2	2.7	3.3	3.9	4.5	5.1
	High	1.5	2.0	2.8	3.6	4.7	5.7	6.8	7.9	9.1
Adaptation Costs**
Adaptation cost as a share of CRV* (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	8	10	12	13	14	15	16	17	18
	Median	13	16	20	23	26	27	29	30	31
	High	22	29	36	42	50	54	53	52	51
High	Low	8	11	15	21	26	32	36	40	45
	Median	15	19	25	32	40	49	57	66	75
	High	23	30	41	54	70	85	100	117	135

Figure C-4: Wastewater sanitary force mains - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO

Back to image

In absence of adaptation
Useful Service Life
Change in USL from projected changes in extreme rainfall (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	-1	-1	-1	-2	-2	-2	-2	-2	-2
	Median	-2	-3	-4	-4	-5	-5	-5	-5	-6
	High	-5	-6	-8	-10	-11	-12	-12	-12	-11
High	Low	-1	-1	-2	-3	-3	-4	-4	-5	-5
	Median	-3	-4	-5	-6	-7	-9	-10	-12	-14
	High	-5	-7	-9	-12	-16	-19	-23	-26	-30
Operations and Maintenance
Change in O&M from projected changes in extreme rainfall (per cent)
Medium	Low	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3	0.4
	Median	0.4	0.5	0.7	0.8	0.9	0.9	1.0	1.0	1.0
	High	0.9	1.1	1.4	1.7	2.0	2.2	2.1	2.1	2.0
High	Low	0.2	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
	Median	0.5	0.6	0.8	1.1	1.3	1.6	1.9	2.2	2.5
	High	0.9	1.2	1.6	2.1	2.8	3.4	4.0	4.7	5.4
Adaptation Costs**
Adaptation cost as a share of CRV* (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	6	8	10	10	11	12	13	13	14
	Median	11	14	17	20	22	24	25	26	27
	High	20	26	32	38	45	49	48	47	46
High	Low	6	9	12	17	21	25	28	32	35
	Median	13	17	21	28	35	42	50	57	65
	High	21	27	37	48	63	76	90	106	122

Figure C-5: Wastewater sewer pipes - Impact of extreme rainfall

* The CRVs presented in the examples are not meant to represent actual unit costs of these assets.

** The unit cost of adapting storm and wastewater assets is the same in both the proactive and reactive adaptation strategies.

Source: FAO

Back to image

In absence of adaptation
Operation and Maintenance
Change in O&M from projected changes in extreme rainfall (per cent)
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	0.3	0.3	0.4	0.4	0.5	0.5	0.5	0.5	0.5
	Median	0.3	0.4	0.5	0.6	0.6	0.6	0.6	0.6	0.6
	High	0.7	0.8	1.0	1.2	1.3	1.4	1.3	1.2	1.2
High	Low	0.3	0.3	0.5	0.7	0.8	0.9	1.0	1.1	1.1
	Median	0.4	0.4	0.6	0.7	0.9	1.1	1.3	1.4	1.6
	High	0.7	0.8	1.1	1.4	1.7	2.1	2.5	2.9	3.4
Adaptation Costs**
Adaptation cost as a share of CRV* (per cent
Emissions Scenario	Projection	2020s	2030s	2040s	2050s	2060s	2070s	2080s	2090s	2100s
Medium	Low	7	8	10	11	12	11	12	13	13
	Median	10	11	15	18	19	19	19	18	18
	High	18	20	26	31	35	36	35	33	31
High	Low	6	8	12	17	19	23	25	27	29
	Median	11	14	18	23	28	34	38	43	49
	High	18	22	30	37	46	57	67	78	90

Figure D-1: The present value cost of each asset management strategy under different discount rates

Note: The costs presented use the median (50th percentile) climate projections and “most likely” engineering costs.

Source: FAO

Back to image

Additional cumulative cost to maintain public linear storm and wastewater infrastructure in a state of good repair, 2022-2100 ($2020, billions present value)
Discount rate	Medium Emissions Scenario			High Emissions Scenario
	No adaptation	Reactive adaptation	Proactive adaptation	No adaptation	Reactive adaptation	Proactive adaptation
0.0%	88	71	89	145	127	148
0.5%	71	72	73	114	120	120
1.0%	58	72	61	91	114	98
1.5%	48	70	51	74	107	81
2.0%	41	68	43	60	101	68
2.5%	34	66	37	50	94	57
3.0%	30	63	32	42	89	49
3.5%	26	60	28	36	84	43
4.0%	23	57	25	31	79	37
4.5%	20	55	22	27	74	33
5.0%	18	52	20	24	70	30
5.5%	16	49	18	21	66	27
6.0%	15	47	17	19	63	24
6.5%	13	45	16	17	59	22
7.0%	12	43	14	15	56	21

Figure E-1: More extreme rainfall will raise the cost of maintaining the current portfolio of public stormwater and wastewater infrastructure by $61 billion in the low emissions scenario in the absence of adaptation

Notes: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario. The costs presented in this chart are in addition to the projected baseline costs over the same period.

Source: WSP and FAO

Back to image

Additional cumulative cost to maintain public stormwater and wastewater infrastructure in a state of good repair (undiscounted real $2020, billions)
Emissions Scenario	Projection	2022	2030	2040	2050	2060	2070	2080	2090	2100
Low	Low	$0	$3	$6	$10	$14	$17	$21	$25	$29
	Median	$1	$5	$12	$21	$30	$36	$45	$54	$61
	High	$1	$9	$22	$37	$54	$71	$89	$106	$123
High	Low	$0	$3	$8	$13	$19	$24	$30	$38	$45
	Median	$1	$6	$14	$24	$36	$47	$60	$75	$88
	High	$1	$11	$25	$44	$66	$90	$117	$142	$166
Medium	Low	$0	$3	$8	$15	$24	$34	$47	$62	$78
	Median	$1	$7	$16	$29	$44	$62	$87	$114	$145
	High	$1	$11	$27	$48	$75	$109	$151	$201	$258

Figure E-2: A reactive adaptation strategy, where assets are adapted when renewed at the end of their service life to withstand the impacts of more extreme rainfall, will add $62 billion in infrastructure costs over the century in the low emissions scenario

Notes: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario. The costs presented in this chart are in addition to the projected baseline costs over the same period.

Source: WSP and FAO

Back to image

Additional cumulative cost to maintain public stormwater and wastewater infrastructure in a state of good repair (undiscounted real $2020, billions)
Emissions Scenario	Projection	2022	2030	2040	2050	2060	2070	2080	2090	2100
Low	Low	$1	$3	$7	$10	$15	$19	$24	$30	$31
	Median	$2	$6	$13	$21	$30	$40	$49	$59	$62
	High	$3	$12	$24	$38	$55	$77	$98	$116	$122
High	Low	$1	$4	$9	$14	$20	$28	$37	$46	$49
	Median	$2	$8	$15	$25	$38	$54	$69	$84	$89
	High	$4	$15	$28	$46	$69	$102	$131	$156	$164
Medium	Low	$3	$6	$11	$18	$29	$46	$64	$83	$89
	Median	$4	$11	$21	$32	$50	$80	$111	$139	$148
	High	$8	$19	$34	$55	$85	$139	$191	$239	$256

Figure E-3: A proactive adaptation strategy, where assets are adapted at the earliest opportunity to withstand the impacts of more extreme rainfall, will add $47 billion in infrastructure costs over the century in the low emissions scenario

Notes: The solid line is the median (or 50th percentile) projection. The coloured bands represent the range of possible outcomes in each emissions scenario. The costs presented in this chart are in addition to the projected baseline costs over the same period.

Source: WSP and FAO

Back to image

Additional cumulative cost to maintain public stormwater and wastewater infrastructure in a state of good repair (undiscounted real $2020, billions)
Emissions Scenario	Projection	2022	2030	2040	2050	2060	2070	2080	2090	2100
Low	Low	$2	$22	$37	$68	$90	$75	$51	$23	$25
	Median	$3	$27	$45	$80	$106	$93	$69	$43	$47
	High	$5	$35	$62	$105	$137	$129	$108	$86	$92
High	Low	$3	$25	$41	$75	$101	$87	$63	$37	$41
	Median	$4	$31	$51	$92	$120	$110	$88	$65	$71
	High	$6	$41	$72	$122	$159	$155	$136	$117	$127
Medium	Low	$4	$31	$51	$92	$123	$114	$93	$72	$79
	Median	$6	$40	$67	$118	$155	$152	$134	$117	$127
	High	$10	$56	$96	$162	$214	$221	$209	$200	$217

---

Footnotes
